Fuel Pump Driver Module (FPDM): Removal

Vehicles with rear bench seat

1. NOTE: When installing the seat cushion, press firmly downward until an audible click is heard.

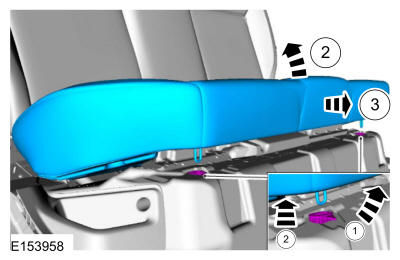

   Remove the rear seat cushion.

   1. Detach the locking tabs.
   2. Lift the cushion up.
   3. Remove the cushion.

   Courtesy of FORD MOTOR COMPANY

   Vehicles with split rear seat backrest

2. Position the RH front seat all of the way forward.
3. Raise the RH rear seat cushion and fold forward.
4. Position the RH rear door weatherstip aside and then remove the scuff plate.

   Courtesy of FORD MOTOR COMPANY

5. Remove the RH outboard safety belt lower anchor bolt.

   Torque

   : 30 lb.ft (40 Nm)

   Courtesy of FORD MOTOR COMPANY

   All vehicles

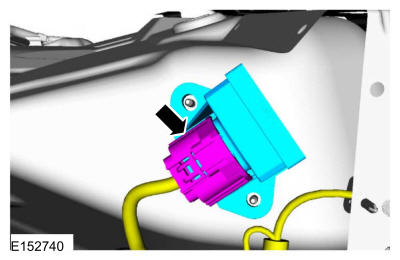

6. NOTE: The FPDM is held in place with an adhesive backing.

   Disconnect the FPDM electrical connector and remove the FPDM.
