Removal And Installation

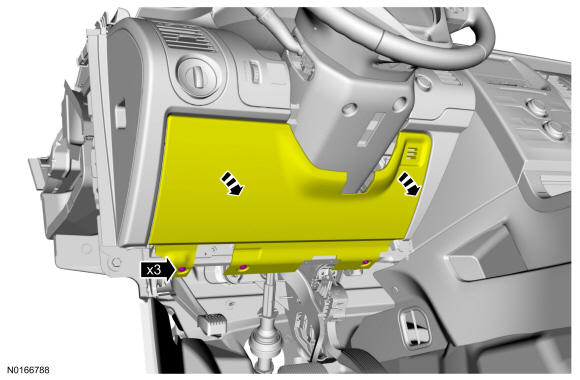

  1. Remove the 3 screws and lower the steering column opening trim panel.
    GFD322204Courtesy of FORD MOTOR COMPANY

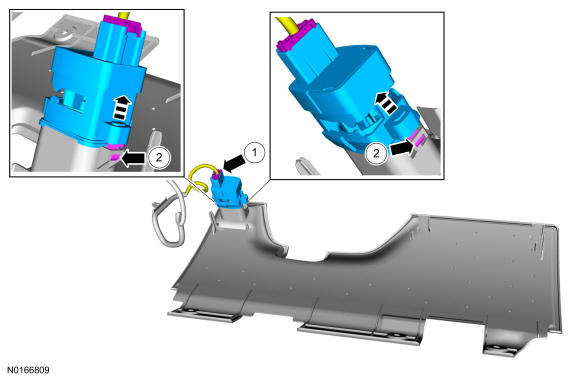

    1. Disconnect the in-vehicle temperature and humidity sensor electrical connector.
    2. Release the retainers and remove the in-vehicle temperature and humidity sensor.
    GFD322205Courtesy of FORD MOTOR COMPANY
  3. To install, reverse the removal procedure.
