Home >> Ford >> 2018 >> Flex SE >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Electronic Engine Controls >> Removal And Installation >> Variable Camshaft Timing (VCT) Oil Control Solenoid - 3. 5L GTDI >> Notes

Variable Camshaft Timing (VCT) Oil Control Solenoid - 3. 5L GTDI: Notes

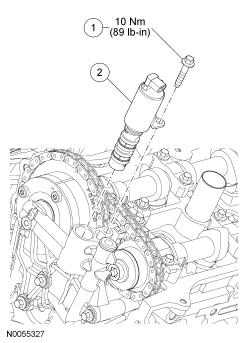

Fig 1: Variable Camshaft Timing (VCT) Oil Control Solenoid Bolt Torque Specifications
GFD321093Courtesy of FORD MOTOR COMPANY
Item Part Number Description
1 W500215 Variable Camshaft Timing(VCT) oil control solenoid bolt
2 6B297 VCT oil control solenoid
