Stability Assist Traction Control Switch: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the FCIM. Refer to: Front Controls Interface Module (FCIM) . Refer to: Front Controls Interface Module (FCIM) . Refer to: Front Controls Interface Module (FCIM) . Refer to: Front Controls Interface Module (FCIM) .

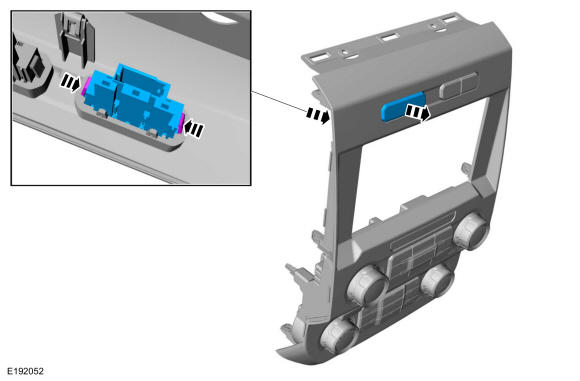

  2. Press the 2 tabs and remove the stability assist/traction control switch.
GFD240793Courtesy of FORD MOTOR COMPANY
