Electronic Engine Controls - 3.5L ECOBOOST (257KW/350PS)
>>
Description And Operation
>>
Electronic Engine Controls - Component Location
>>

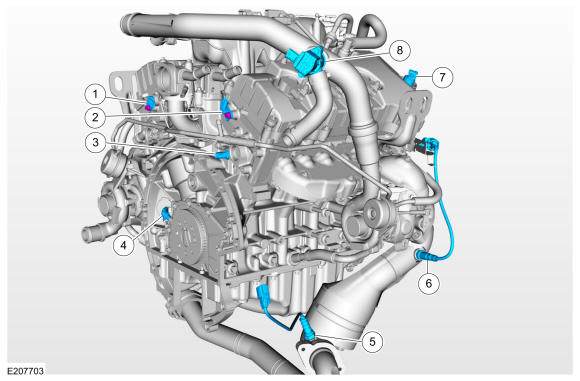

Electronic Engine Controls- RH
Electronic Engine Controls- RH
Courtesy of FORD MOTOR COMPANY
Item
Description
1
Left hand CMP sensor
2
Right hand CMP sensor
3
CHT sensor
4
CKP sensor
5
Right hand catalyst monitor sensor
6
Right hand HO2S
7
Right hand VCT oil control solenoid
8
Turbocharger bypass valve
