Heated Second Row Seat Module: Removal

NOTE: Second row single seat shown, second row double seat similar.

NOTE: Removal steps in this procedure may contain installation details.

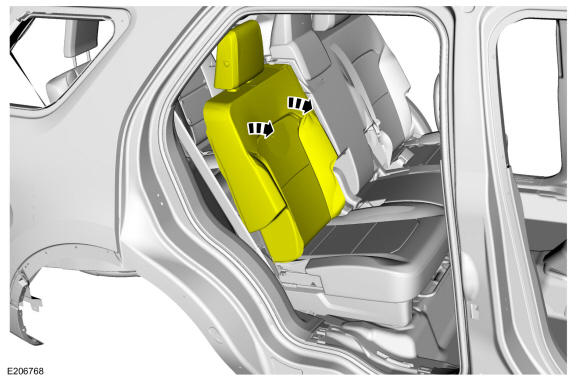

Place the backrest in the fold flat position.

Courtesy of FORD MOTOR COMPANY

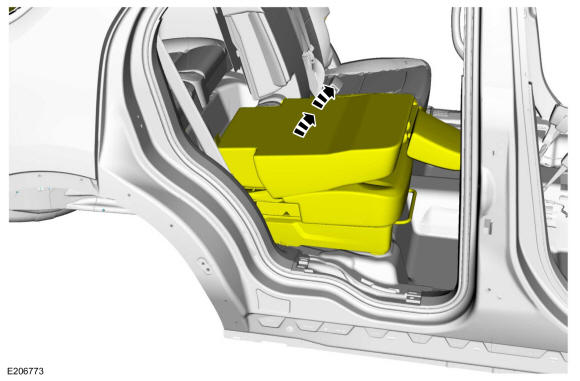

Place the seat in the easy entry position.

Courtesy of FORD MOTOR COMPANY

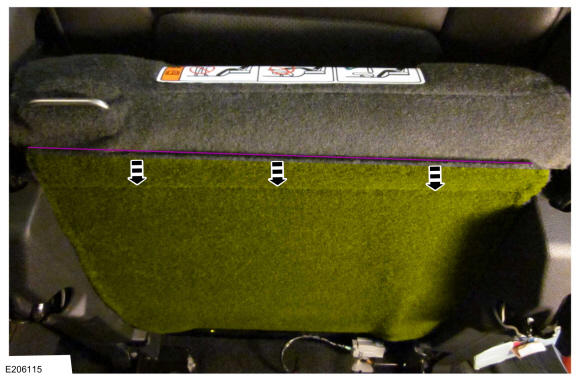

Release the seat cushion cover J-clip.

Courtesy of FORD MOTOR COMPANY

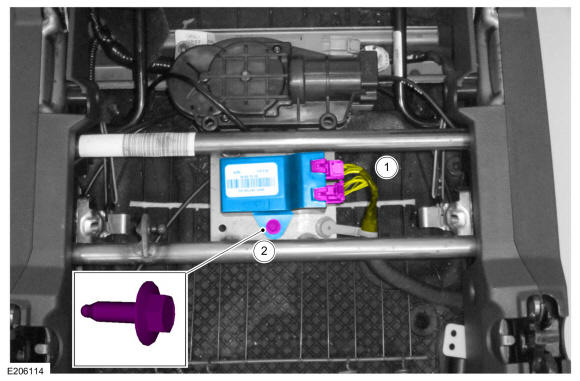

Remove the heated seat module.
1. Disconnect the electrical connectors.
2. Remove the fastener.
  Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
