Electronic Engine Controls - Rear

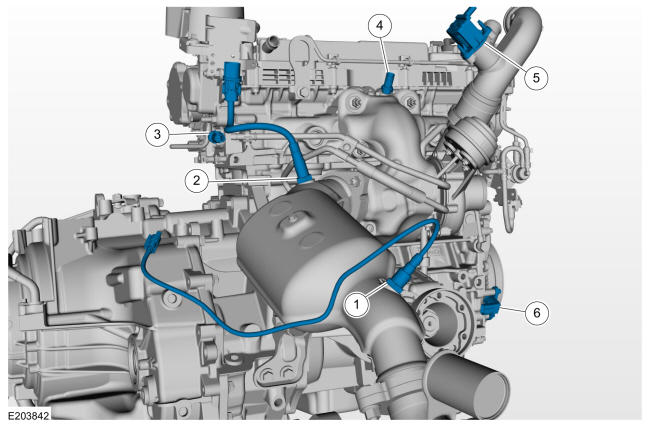

GFD332448Courtesy of FORD MOTOR COMPANY
Item Description
1 Catalyst monitor sensor
2 HO2S
3 ECT sensor
4 CHT sensor
5 Turbocharger bypass valve
6 CKP sensor
