Relay - Mini ISO
Relay - Mini ISO

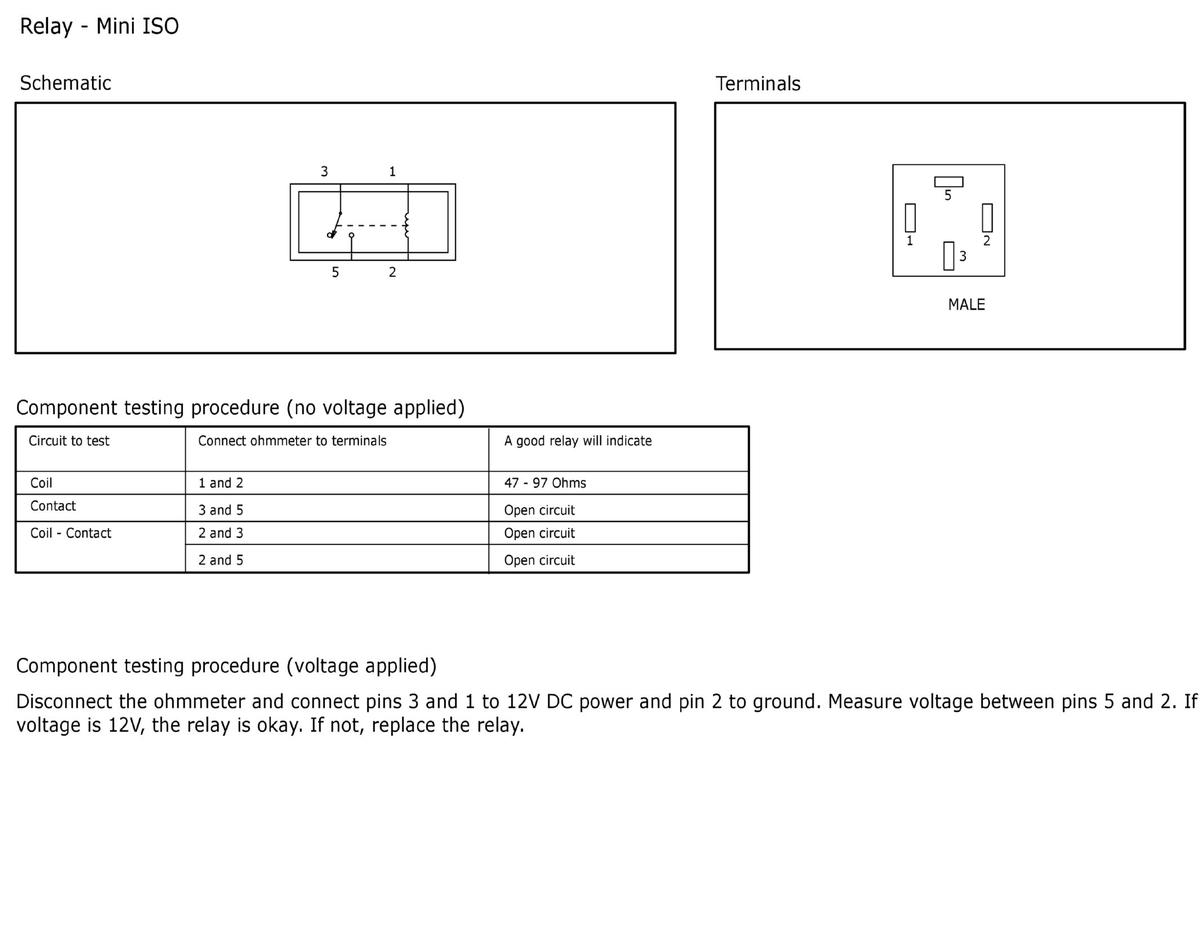

Fig 1: Relay - Mini ISO
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
