Front Seat Track Motor: Removal

WARNING: The following procedure prescribes critical repair steps required for correct restraint system operation during a crash. Follow all notes and steps carefully. Failure to follow step instructions may result in incorrect operation of the restraint system and increases the risk of serious personal injury or death in a crash.
WARNING: Wear protective gloves when handling components or parts that have pointed or sharp edges. Failure to follow this instruction may result in serious personal injury.
NOTE: Typical seat shown, others similar.

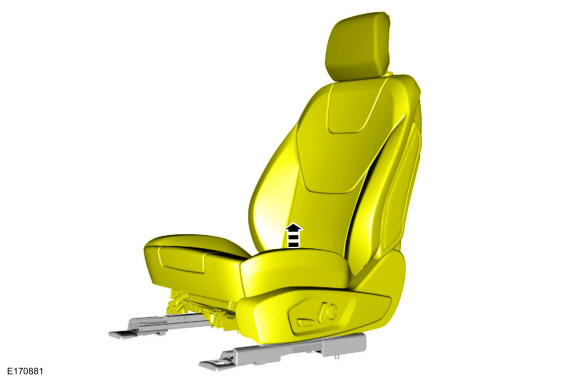

  1. Position the front seat to the full upward position.
    GFD257387Courtesy of FORD MOTOR COMPANY
  2. Remove the front seat. Refer to: Front Seat  .
  3. Remove the front seat cushion side shield screws.
    GFD257354Courtesy of FORD MOTOR COMPANY
  4. Position aside the side shield.

    1. Pull outward on the side shield.
    2. Push the side shield forward.

    GFD257355Courtesy of FORD MOTOR COMPANY
    1. Disconnect the seat switch electrical connector.
    2. Remove the side shield.
    GFD257356Courtesy of FORD MOTOR COMPANY
  6. Disconnect the front seat track motor (fore-aft) electrical connector, release the retainers and position the wire harness aside.
    GFD257388Courtesy of FORD MOTOR COMPANY
  7. Release the retainers and position the wire harness aside.
    GFD257389Courtesy of FORD MOTOR COMPANY

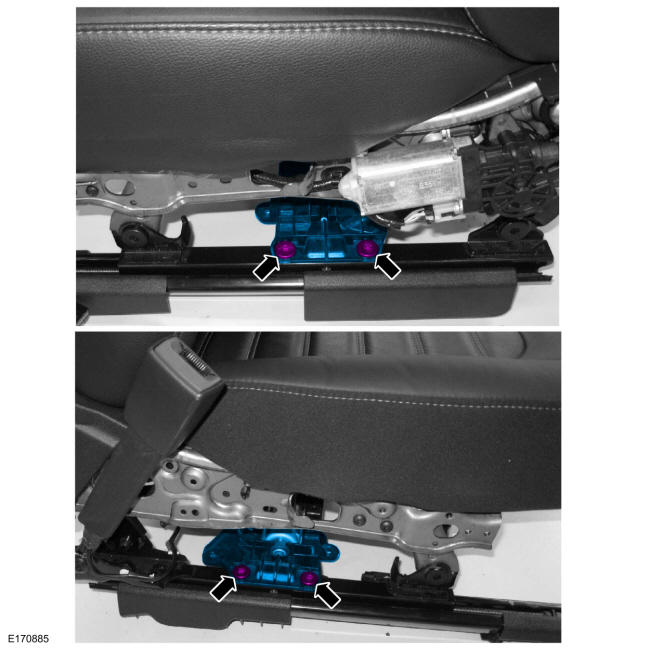

  8. Remove the bolts and the front seat track motor.
GFD257390Courtesy of FORD MOTOR COMPANY
