Front Seat Lumbar Assembly: Removal

NOTE: Driver seat shown, passenger seat similar.
  1. NOTE: Position the backrest cover up only enough to access the lumbar assembly.

    Remove the front seat backrest cover. Refer to: Front Seat Backrest Cover  .

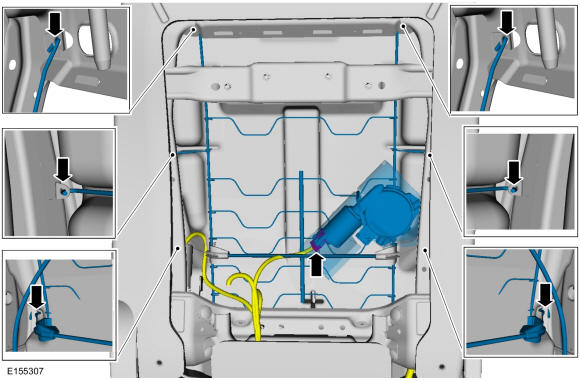

  2. Disconnect the electrical connector, release the J-hooks and remove the lumbar assembly.
GFD257349Courtesy of FORD MOTOR COMPANY
