LH Engine Sensor Locations

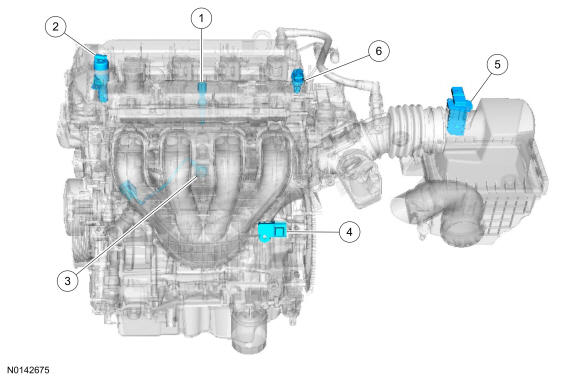

GFD255581Courtesy of FORD MOTOR COMPANY
Item Description
1 CHT sensor
2 VCT oil control solenoid
3 KS
4 MAP sensor
5 MAF sensor
6 CMP sensor
