Electronic Engine Controls - Component Location

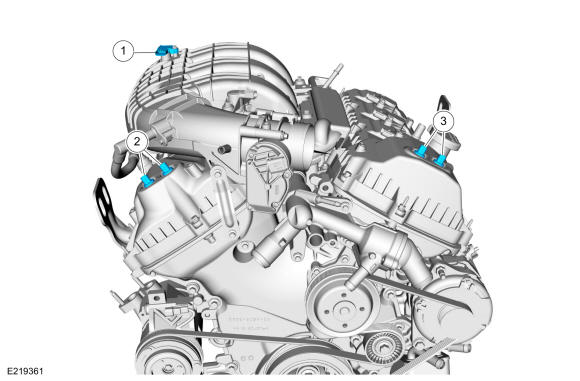

Electronic Engine Controls- Front
| Item | Description |
|---|---|
| 1 | MAPT sensor. |
| 2 | RH VCT oil control solenoid |
| 3 | LH VCT oil control solenoid |

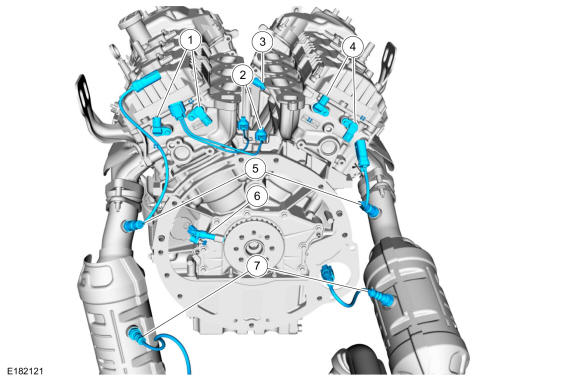

Electronic Engine Controls - Rear
| Item | Description |
|---|---|
| 1 | LH CMP sensor |
| 2 | KS |
| 3 | CHT sensor |
| 4 | RH CMP sensor |
| 5 | HO2S |
| 6 | CKP sensor |
| 7 | Catalyst monitor sensor |

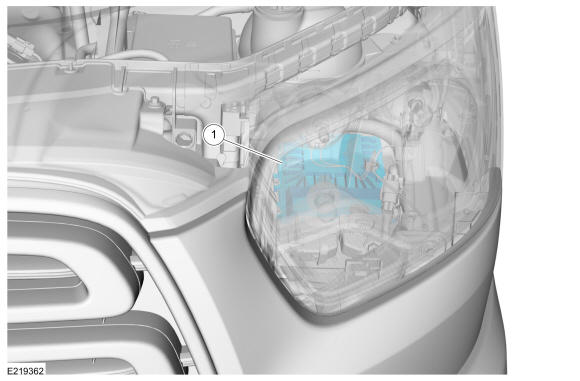

Powertrain Control Module (PCM)
| Item | Description |
|---|---|
| 1 | PCM |
