Reductant Dosage Control Module (RDCM): Removal

NOTE: Removal steps in this procedure may contain installation details.

• 1.

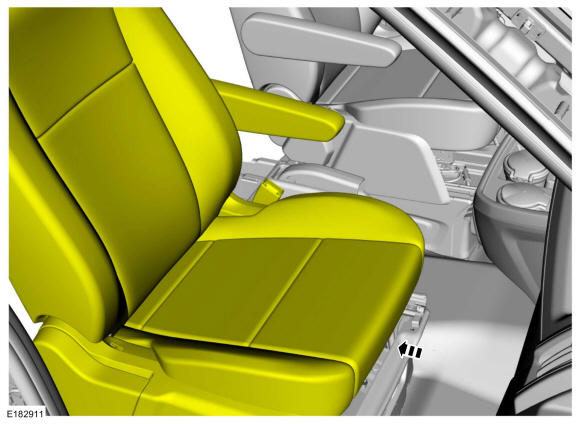

  Position the seat to the rear most position.

Courtesy of FORD MOTOR COMPANY

• 2.

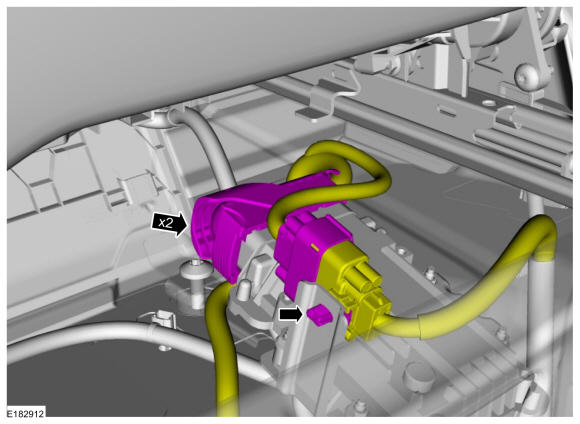

  Release the wire harness retainer and disconnect the electrical connectors.

Courtesy of FORD MOTOR COMPANY

• 3.

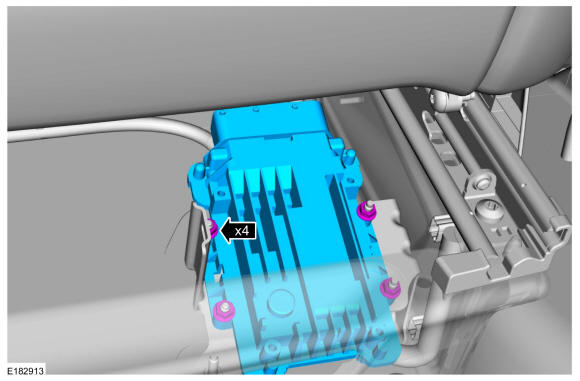

  Remove the retainers and the reductant dosage control module (RDCM).

  Torque: 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY
