Powertrain Control Module (PCM): Removal

NOTE: Removal steps in this procedure may contain installation details.

1.

NOTE: This step is only necessary when installing a new component.

Download the module information to the diagnostic tool using the Programmable Modules Installation routine. Refer to: Module Configuration - System Operation and Component Description .

2.

Remove the LH headlight. Refer to: Headlamp Assembly .

3.

Disconnect the transmission control module and the engine harnesses.

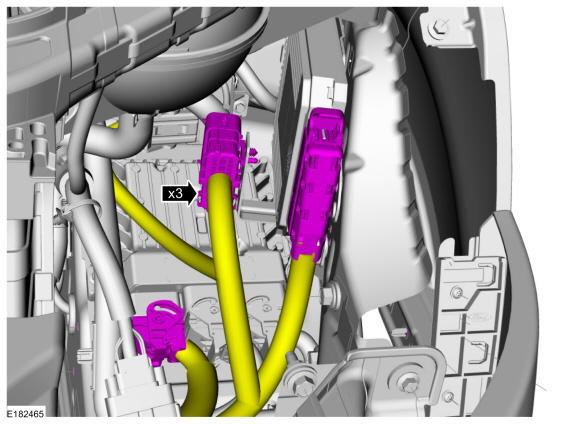

GFD145268

Courtesy of FORD MOTOR COMPANY

4.

Disconnect the PCM electrical connectors.

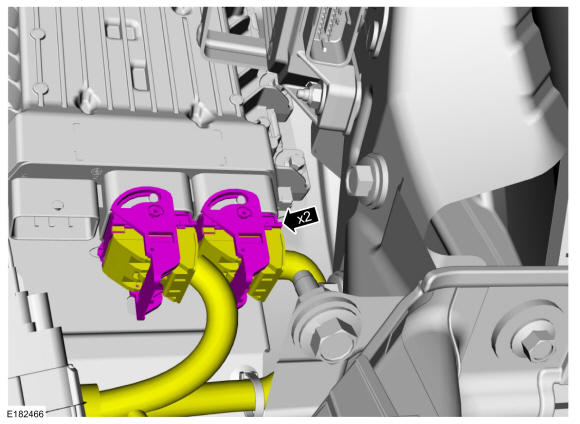

GFD145269

Courtesy of FORD MOTOR COMPANY

5.

Remove the bolts and the PCM.

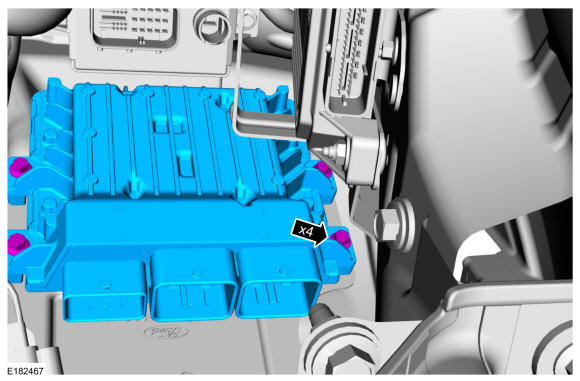

GFD145270

Courtesy of FORD MOTOR COMPANY
