Transmission Controls - MPS6

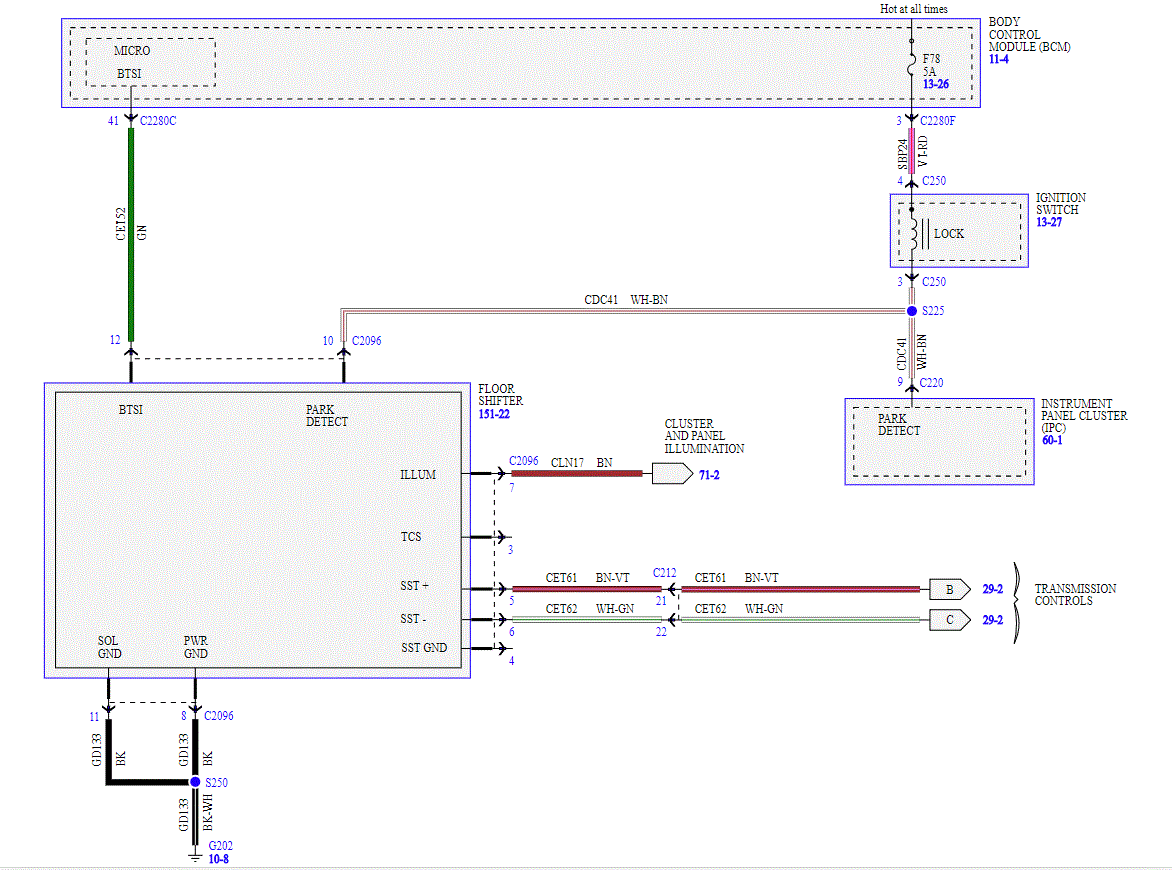

Fig 1: Transmission Controls - MPS6 Wiring Diagram (1 of 2)
GFDW86648Courtesy of FORD MOTOR COMPANY

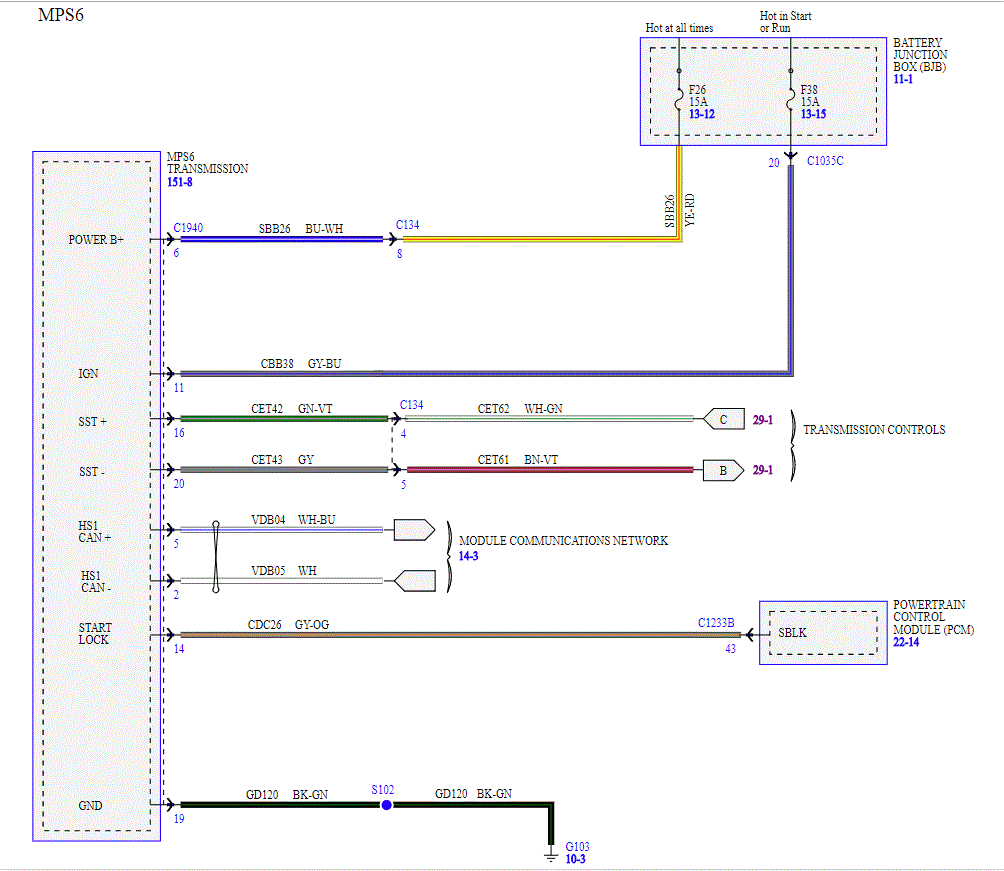

Fig 2: Transmission Controls - MPS6 Wiring Diagram (2 of 2)
GFDW86649Courtesy of FORD MOTOR COMPANY
