Climate Control Housing: Installation
- To install, reverse the removal procedure.
- Coat the O-rings on the refrigerant lines.
Material: Motorcraft ® PAG Refrigerant Compressor Oil / YN-12-D (WSH-M1C231-B)
-

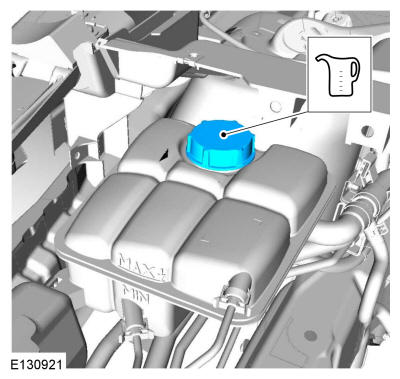

NOTE: Make sure that fluid level is to the MAX mark.
Fill the degas bottle with the recommended coolant mixture and fill level.
Material: Motorcraft ® Orange Concentrated Antifreeze/Coolant / VC-3-B (WSS-M97B44-D)
