Front Seat Lumbar Assembly: Removal

WARNING: This page is about a different car, the 2016 Ford Transit Connect. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.

  1. 1.

    Remove the front seat backrest cover. Refer to: Front Seat Backrest Cover .

  1. 2.

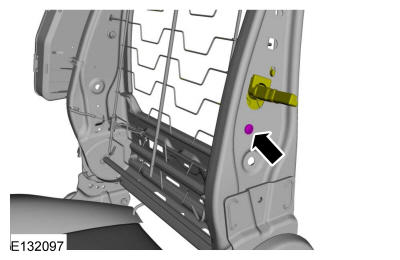

    Remove the screw and position the lumbar actuator aside.

    Torque: 9 lb.in (1 Nm)

GFD151343Courtesy of FORD MOTOR COMPANY

  1. 3.

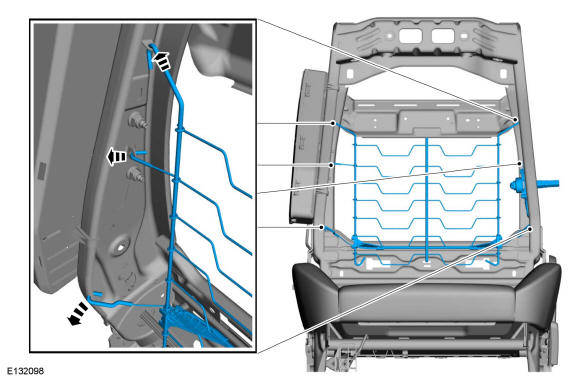

    Detach the lumbar assembly J-hooks and remove the lumbar assembly.
GFD151344Courtesy of FORD MOTOR COMPANY
