Rear Coolant Flow Pump: Removal

WARNING: This page is about a different car, the 2016 Ford Transit Connect. However, it is still accessible from the selected car via links, so may be relevant.

1.

Refer to: Engine Cooling System Health and Safety Precautions .

2.

With the vehicle in N, position it on a hoist. Refer to: Jacking and Lifting - Overview .

3.

Remove the retainers and the shield plate.

Courtesy of FORD MOTOR COMPANY

4.

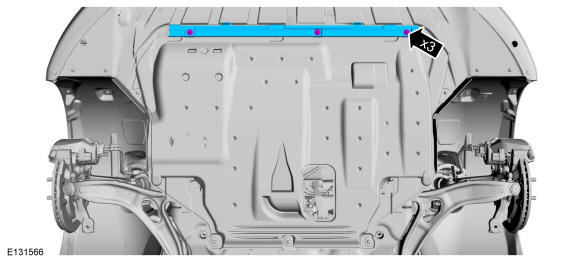

Remove the retainers and the engine undershield.

Courtesy of FORD MOTOR COMPANY

5.

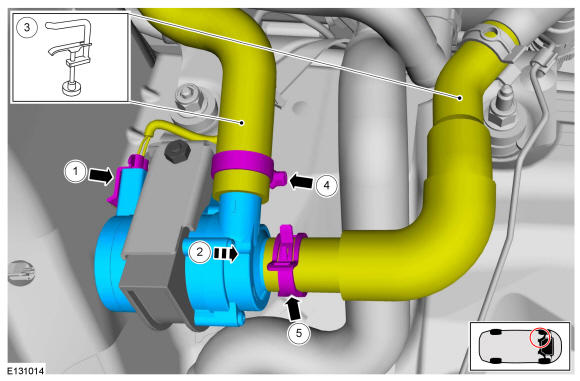

Courtesy of FORD MOTOR COMPANY
- 1.

  Disconnect the electrical connector.
- 2.

  Detach and remove the rear coolant flow pump from the bracket.
- 3.

  Pinch off the coolant hoses. Use the General Equipment: Hose Clamp(s) Use the General Equipment: Hose Clamp Remover/Installer
- 4.

  Release the clamp and disconnect the coolant hose.
- 5.

  Release the clamp and disconnect the coolant hose.

Courtesy of FORD MOTOR COMPANY
