Liftgate Release Switch: Removal

WARNING: This page is about a different car, the 2016 Ford Transit Connect. However, it is still accessible from the selected car via links, so may be relevant.

  1. 1.

    Remove the liftgate release handle Refer to: Liftgate Release Handle .

  1. 2.

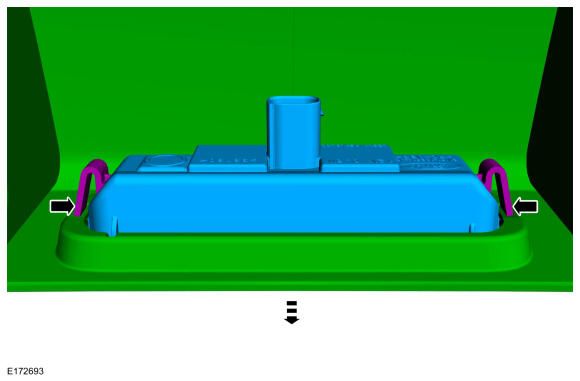

    Remove the liftgate release switch.
    • Release the retaining tabs.
    • Remove the liftgate release switch.
GFD151594Courtesy of FORD MOTOR COMPANY
