Transmission Controls - MPS6
Transmission Controls - MPS6
WARNING:
This page is about a different car, the 2016 Ford Transit Connect. However, it is still accessible from the selected car via links, so may be relevant.

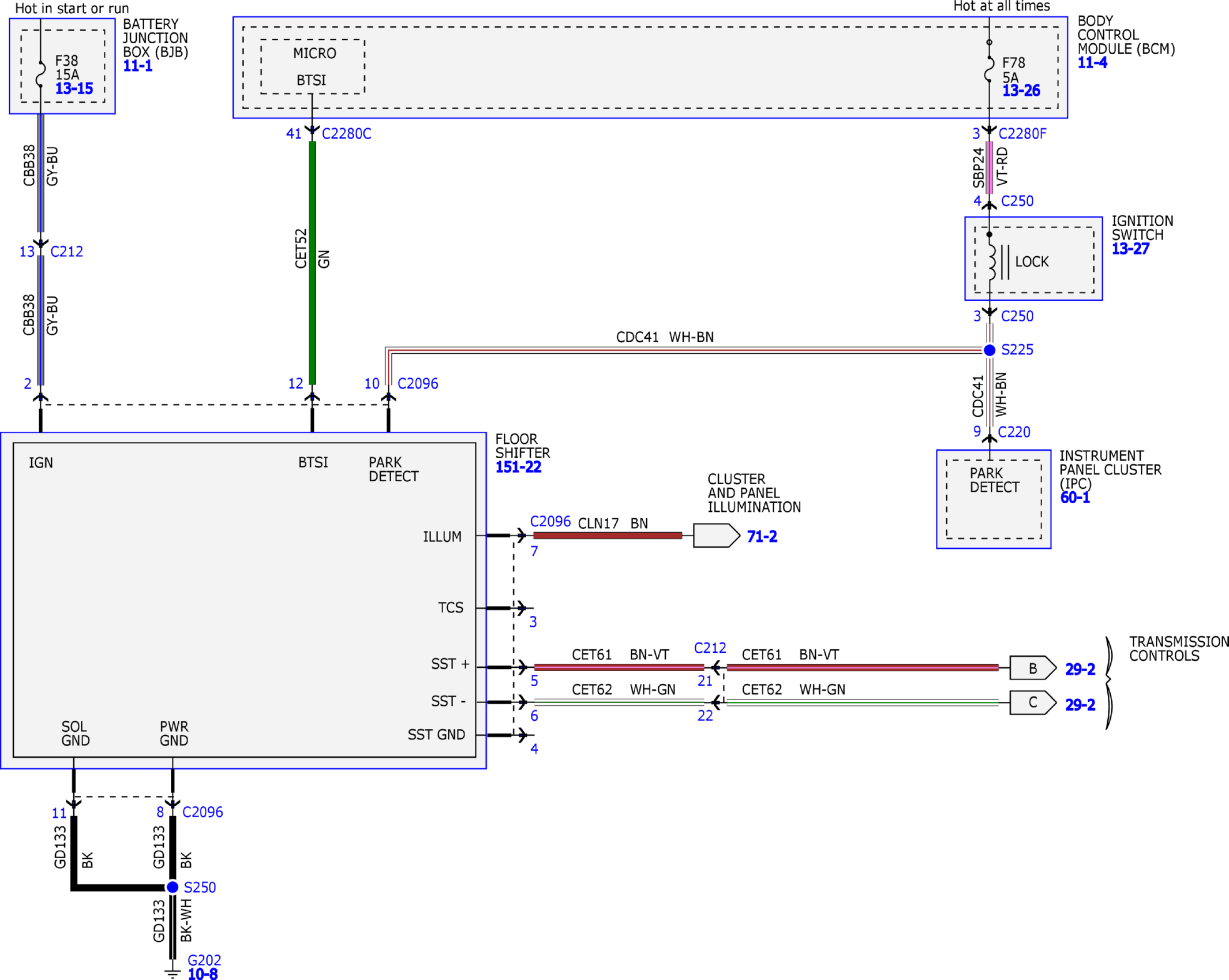

Fig 1: Transmission Controls - MPS6 Wiring Diagram (1 of 2)
Courtesy of FORD MOTOR COMPANY

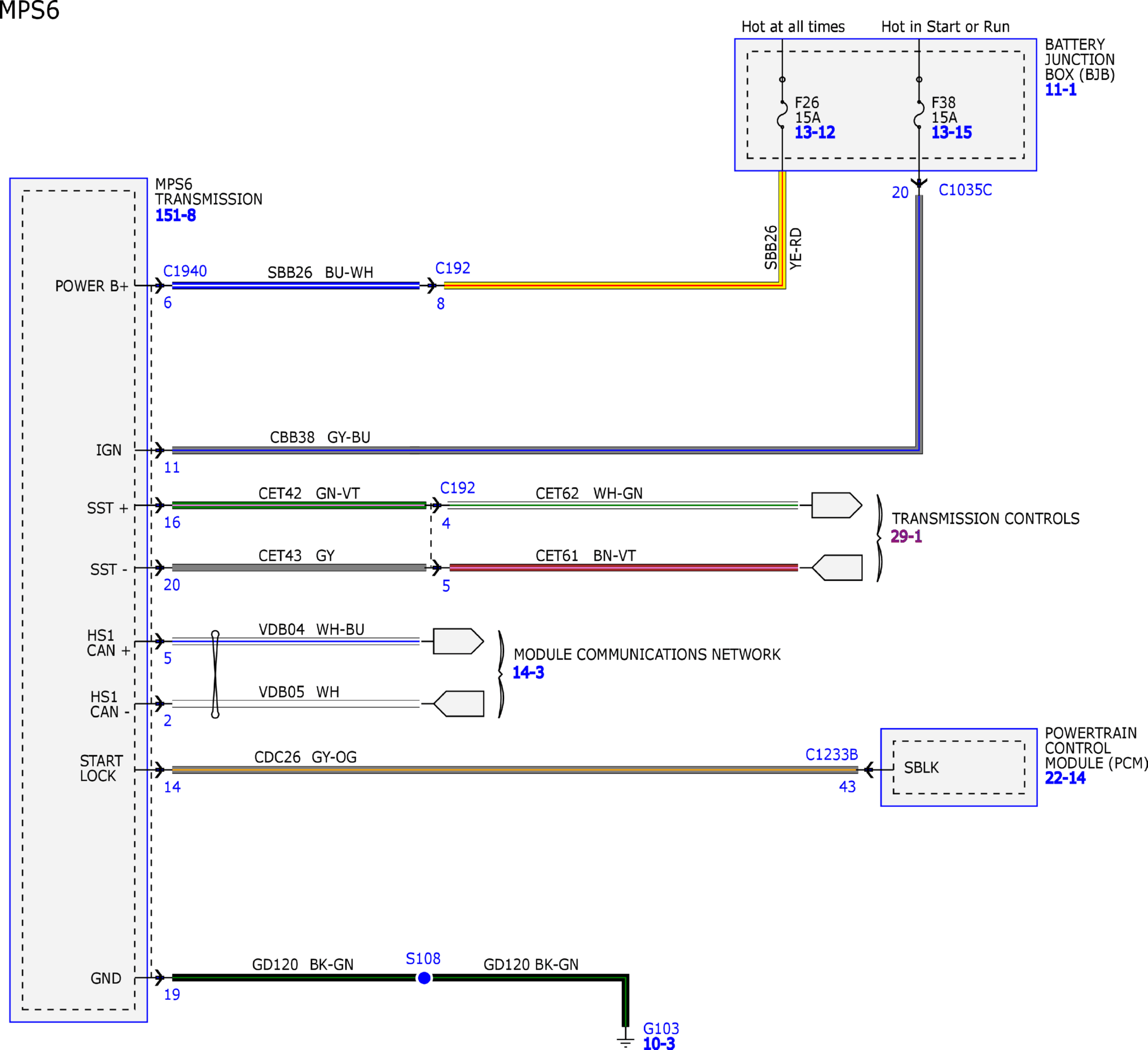

Fig 2: Transmission Controls - MPS6 Wiring Diagram (2 of 2)
Courtesy of FORD MOTOR COMPANY
