Section 12 (OEM Wiring Diagrams)
>>
Passive Anti-Theft System
Passive Anti-Theft System
WARNING:
This page is about a different car, the 2016 Ford Transit Connect. However, it is still accessible from the selected car via links, so may be relevant.

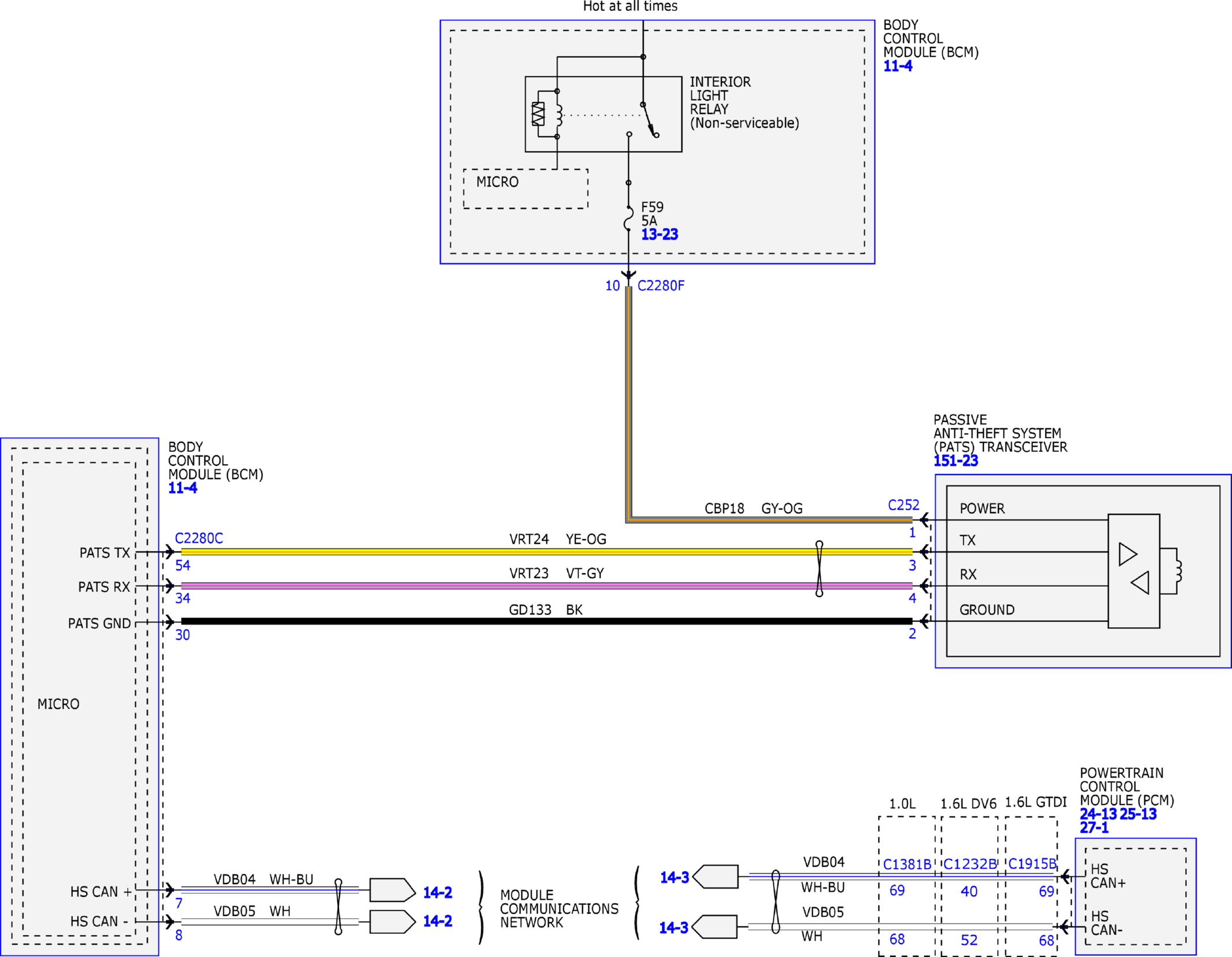

Fig 1: Passive Anti-Theft System Wiring Diagram
Courtesy of FORD MOTOR COMPANY
