Clutch Pedal Position (CPP) Switch: Removal

  1. NOTE: Make sure that the clutch pedal remains in the rest position.
    NOTE: Removal steps in this procedure may contain installation details.

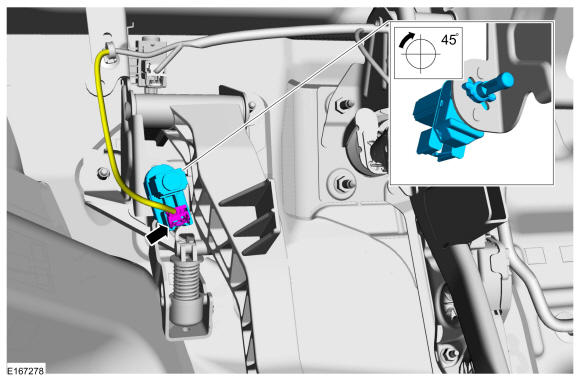

    Disconnect the electrical connector and remove CPP switch from the bracket.

GFD214896Courtesy of FORD MOTOR COMPANY
