Fuel Rail - 3.5L GTDI: Removal
WARNING:
Do not smoke, carry lighted tobacco or have an open flame of any type when working on or near any fuel-related component. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in serious personal injury.
WARNING:
Do not carry personal electronic devices such as cell phones, pagers or audio equipment of any type when working on or near any fuel-related component. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in serious personal injury.
WARNING:
When handling fuel, always observe fuel handling precautions and be prepared in the event of fuel spillage. Spilled fuel may be ignited by hot vehicle components or other ignition sources. Failure to follow these instructions may result in serious personal injury.
WARNING:
Before working on or disconnecting any of the fuel tubes or fuel system components, relieve the fuel system pressure to prevent accidental spraying of fuel. Fuel in the fuel system remains under high pressure, even when the engine is not running. Failure to follow this instruction may result in serious personal injury.
WARNING:
Clean all fuel residue from the engine compartment. If not removed, fuel residue may ignite when the engine is returned to operation. Failure to follow this instruction may result in serious personal injury.
WARNING:
Always disconnect the battery ground cable at the battery when working on an evaporative emission (EVAP) system or fuel-related component. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in serious personal injury.
NOTE:
A clean working environment is essential to prevent dirt or foreign material contamination.
- 1.
Release the fuel system pressure. For additional information, refer to Fuel System General Information .
- 2.
Disconnect the battery ground cable. For additional information, refer to Battery, Mounting and Cables .
- 3.
Remove the intake manifold. For additional information, refer to Engine 3.5L GTDI .
- 6.NOTE: To release the fuel pressure in the high pressure fuel tube, wrap the flare nuts with a shop towel to absorb any residual fuel pressure during the loosening of the flare nuts.
Loosen the 3 flare nuts and remove the high pressure fuel tube.
- 8.NOTE: It is very important to note the routing of the fuel charge wire harnesses on the fuel rails and index-mark the location of the tie straps prior to removal or damage may occur to the wire harnesses during installation.NOTE: Use compressed air and remove any dirt or foreign material from the cylinder head, block and general surrounding area of the fuel rail and injectors.
Cut, remove and discard the fuel charge wiring harness tie straps.

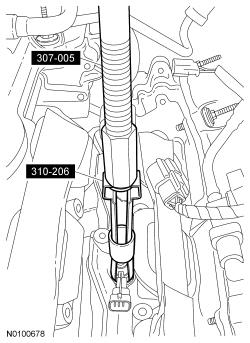

- 9.NOTE: Pull out the fuel rails in the direction of the fuel injector axis or damage may occur to the fuel injectors.NOTE: When removing the fuel rails, the fuel injectors may remain in the fuel rails but normally remain in the cylinder heads and require the use of a Fuel Injector Remover tool to extract.
Remove and discard the 6 bolts and remove the LH fuel rail.
- 11.
Disconnect the 6 fuel injector electrical connectors and remove the 2 fuel charge wire harnesses.
