Fuel Rail: Installation

1.

NOTE: Use O-ring seals that are made of special fuel-resistant material. Use of ordinary O-rings can cause the fuel system to leak. Do not reuse the O-ring seals.

NOTE: The upper and lower fuel injector O-ring seals are similar in appearance, but are not interchangeable.

NOTE: Make sure that new fuel injector O-ring seals are installed.

Install the new fuel injector O-ring seals and the fuel injector retaining clips onto the fuel injectors. Lubricate the new fuel injector O-ring seals with clean engine oil.

GFD130725

Courtesy of FORD MOTOR COMPANY

2.

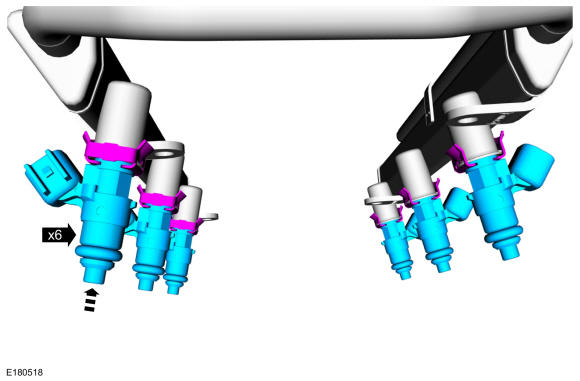

Install the fuel injectors into the fuel rail.

GFD130726

Courtesy of FORD MOTOR COMPANY

3.

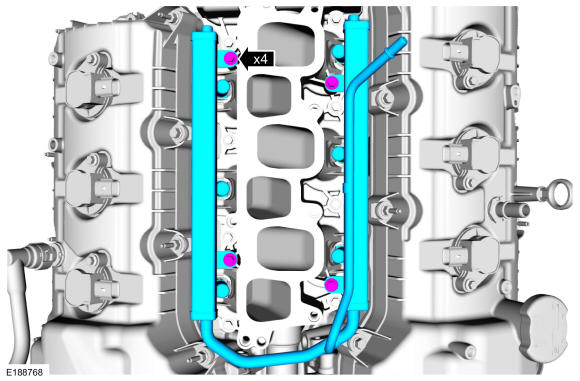

Install the fuel rail, then install and tighten the fuel rail retaining bolts.
Torque: 89 lb.in (10 Nm)

GFD130722

Courtesy of FORD MOTOR COMPANY

4.

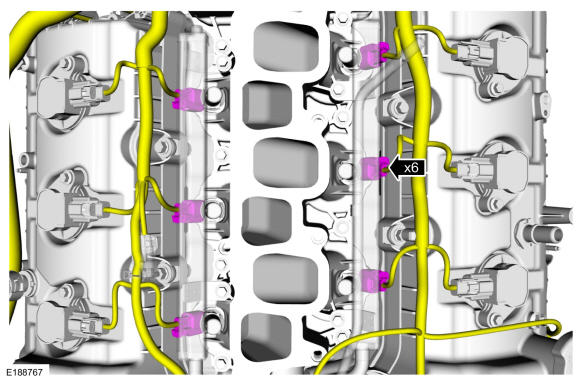

Connect the fuel injector electrical connectors.

GFD130721

Courtesy of FORD MOTOR COMPANY

5.
- 1.

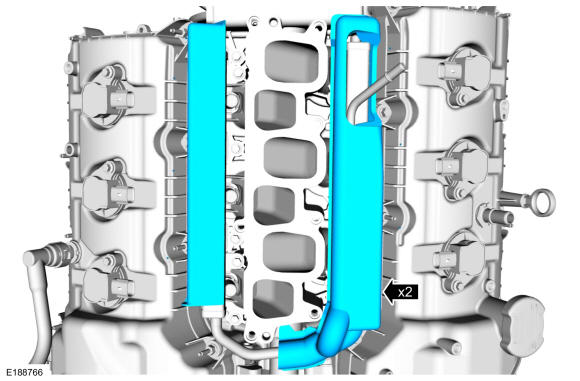

  Install the RH and LH fuel rail insulators.

GFD130720

Courtesy of FORD MOTOR COMPANY

6.

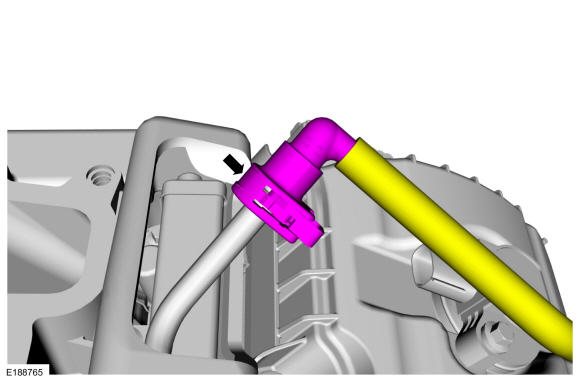

Connect the fuel rail fuel feed tube. Refer to: Quick Release Coupling .

GFD130719

Courtesy of FORD MOTOR COMPANY

7.

Install the upper intake manifold. Refer to: Upper Intake Manifold .

8.

Reconnect the battery. Refer to: Battery Disconnect and Connect .

9.

Pressurize the fuel system. Refer to: Fuel System Pressure Release .
