Intake Manifold Runner Control (IMRC) Position Sensor: Removal

NOTE: Removal steps in this procedure may contain installation details.

1. 1.

   Remove the intake manifold. Refer to: Intake Manifold .

1. 2.

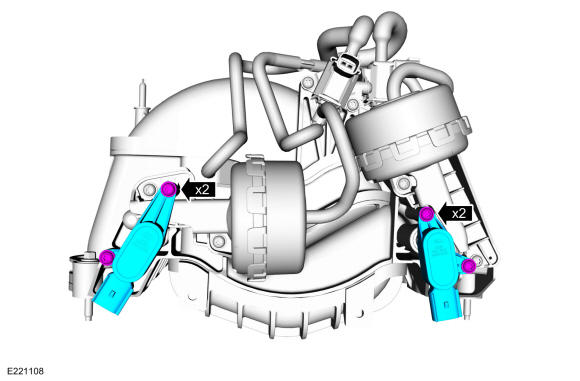

   • Remove the retainers and the LH IMRC position sensor.

     Torque: 53 lb.in (6 Nm)

   • Remove the retainers and the RH IMRC position sensor.

     Torque: 53 lb.in (6 Nm)

Courtesy of FORD MOTOR COMPANY
