Engine Mount Control Solenoid: Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. 1.

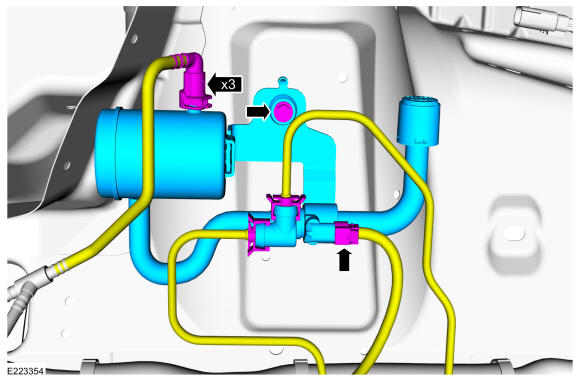

    Disconnect the electrical, and the vacuum hose connectors. Remove the retainer and the engine mount control solenoid.

    Torque: 97 lb.in (11 Nm)

GFD130976Courtesy of FORD MOTOR COMPANY
