Head Up Display (HUD) Module: Removal

  1. 1.

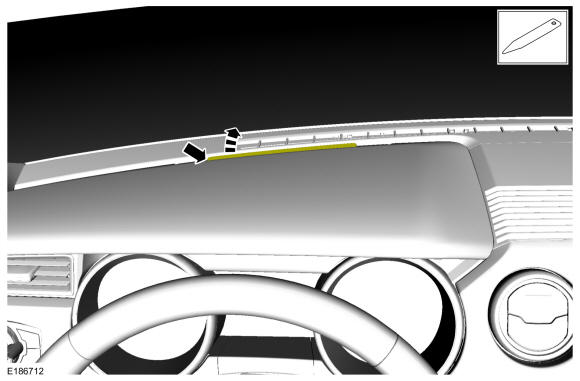

    Using a non-marring tool, release the tab and position the HUD up.
GFD132714Courtesy of FORD MOTOR COMPANY

  1. 2.

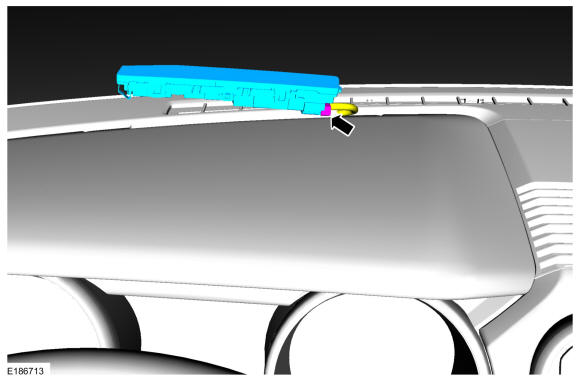

    Disconnect the electrical connector and remove the HUD.
GFD132715Courtesy of FORD MOTOR COMPANY
