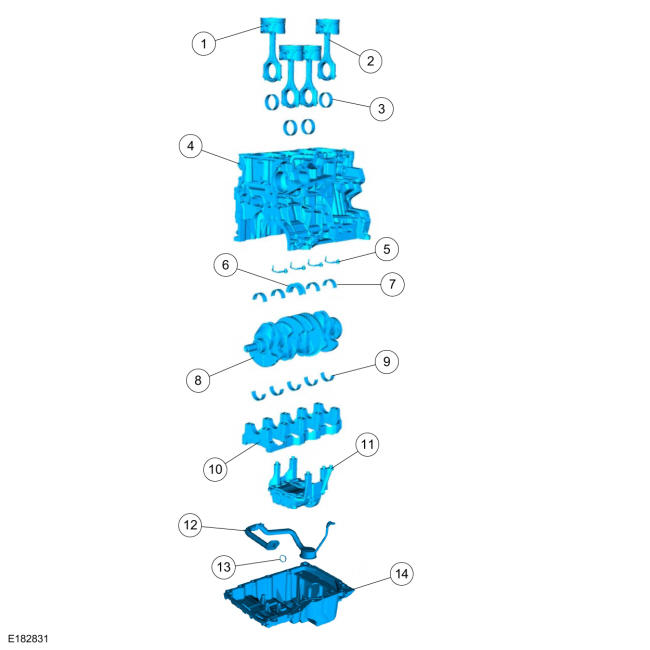

| 1 |
6110 |
Piston (4 required) |
| 2 |
6200 |
Connecting rod (4 required) |
| 3 |
6211 |
Connecting rod bearing (8 required) |
| 4 |
6010 |
Cylinder block |
| 5 |
6K868 |
Piston oil cooler valve (4 required) |
| 6 |
6337 |
Cylinder block crankshaft main thrust bearing |
| 7 |
6333 |
Cylinder block crankshaft main bearing (4 required) |
| 8 |
6300 |
Crankshaft assembly |
| 9 |
6A338 |
Crankshaft main bearing beam bearing (5 required) |
| 10 |
- |
Main bearing beam (part of 6010) |
| 11 |
6K360 |
Balance shaft assembly |
| 12 |
6622 |
Oil pump screen and cover assembly |
| 13 |
6625 |
Oil pump screen and cover assembly O-ring |
| 14 |
6675 |
Oil pan |
