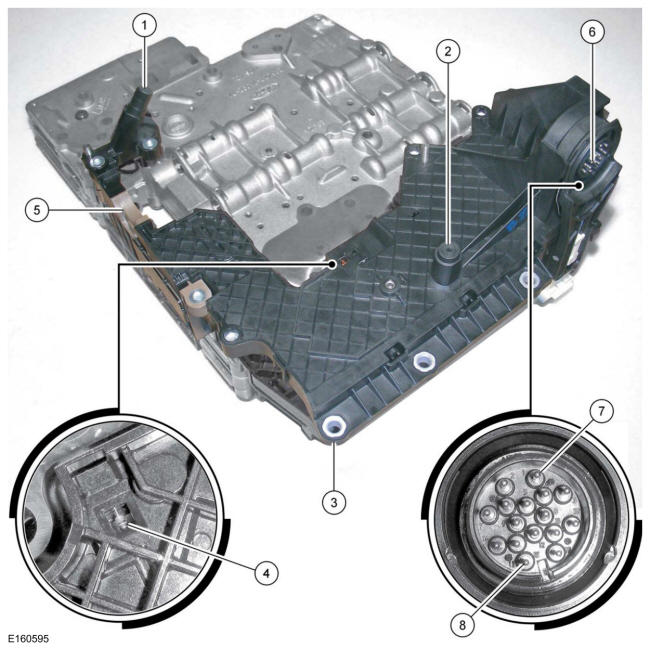

Main Control Valve Body

WARNING: This page is about a different car, the 2016 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of FORD MOTOR COMPANY

1	TSS
2	OSS
3	Molded leadframe
4	TFT
5	TR
6	Leadframe connector
7	Terminal 1
8	Terminal 16
