High Mounted Stoplamp: Notes

WARNING: This page is about a different car, the 2015 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

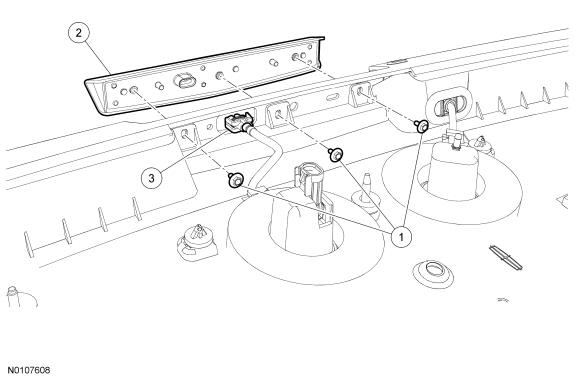

GFD94843Courtesy of FORD MOTOR COMPANY
Item Part Number Description
1 - High mounted stoplamp screws (3 required) (part of 7444210)
2 13A613 High mounted stoplamp
3 - High mounted stoplamp electrical connector (part of 7444210)
