Module Controlled Functions - Component Location

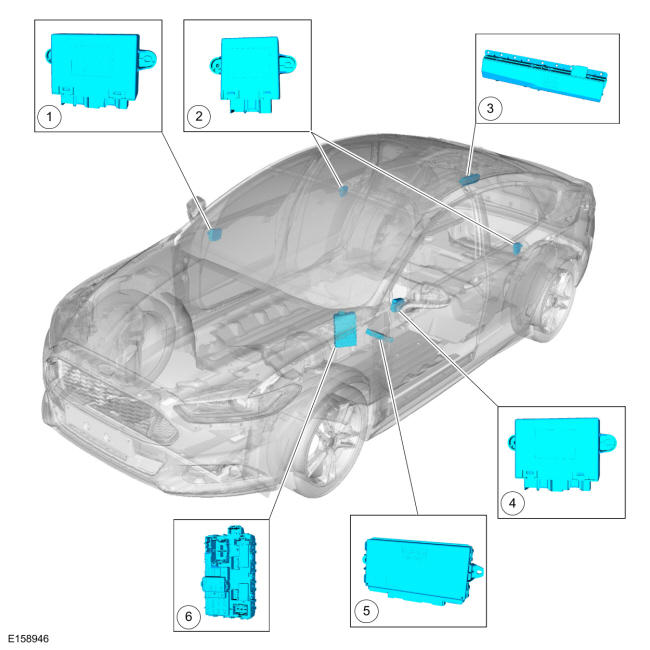

GFD196091Courtesy of FORD MOTOR COMPANY
Item Description
1 PDM
2 Rear door modules
3 RTM
4 DDM
5 DSM
6 BCM
