Fuel Pump Driver Module (FPDM): Removal

NOTE: Removal steps in this procedure may contain installation details.

Remove the left C-pillar lower trim panel. Refer to: C-Pillar Lower Trim Panel .

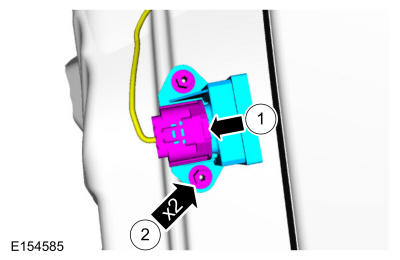

1. Disconnect the FPDM electrical connector.
2. Remove the FPDM retaining nuts and then remove the FPDM.
  Torque: 13 lb.in (1.5 Nm)
