Variable Valve Timing (VVT) Oil Control Solenoid: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the valve cover. Refer To: Valve Cover .

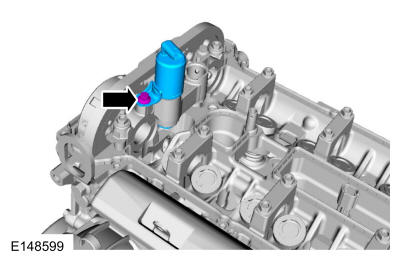

  2. Remove the bolt and the VCT oil control solenoid.

    Torque: 89 lb.in (10 Nm)

GFD193941Courtesy of FORD MOTOR COMPANY
