Module Communications Network

WARNING: This page is about a different variant/trim than selected.

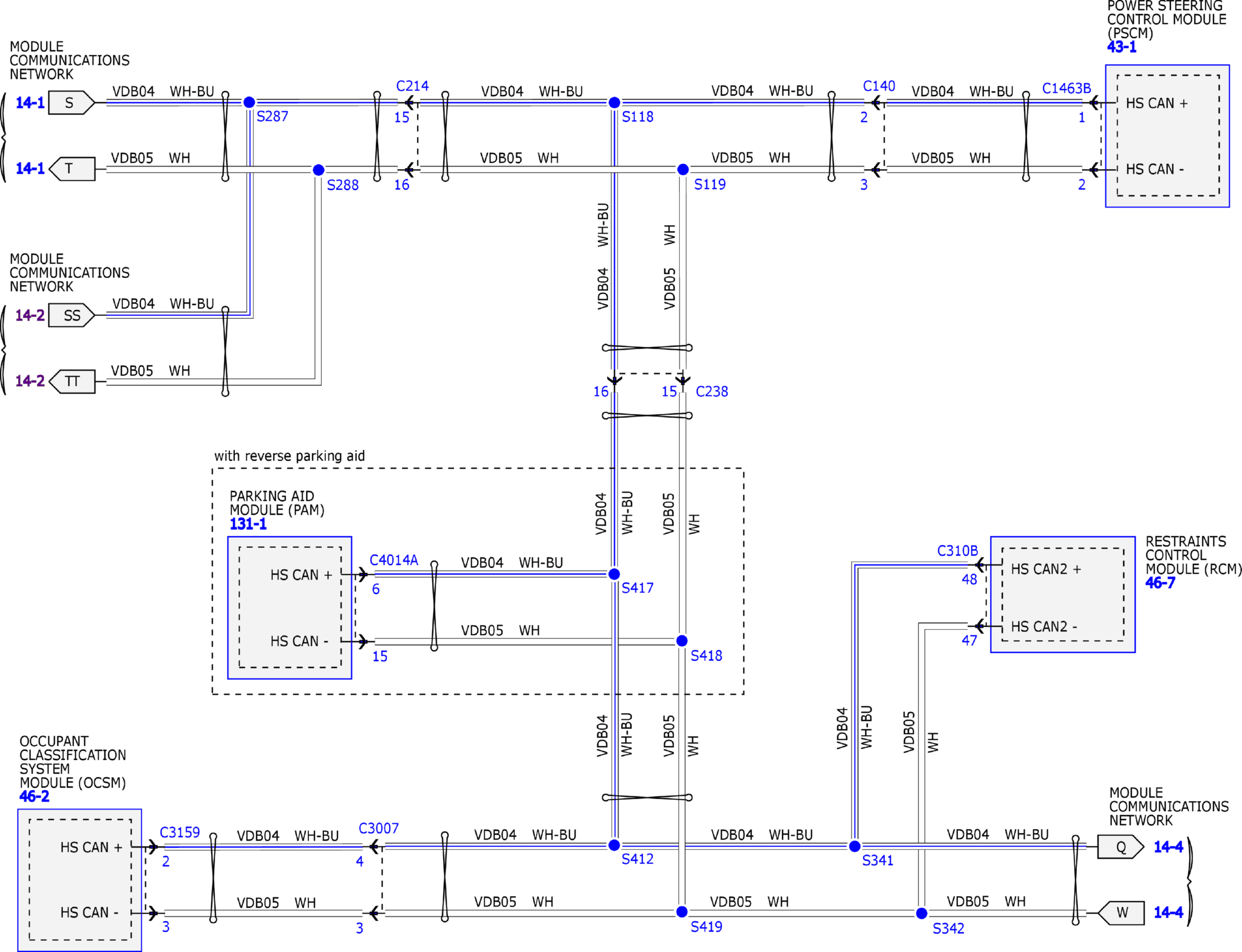

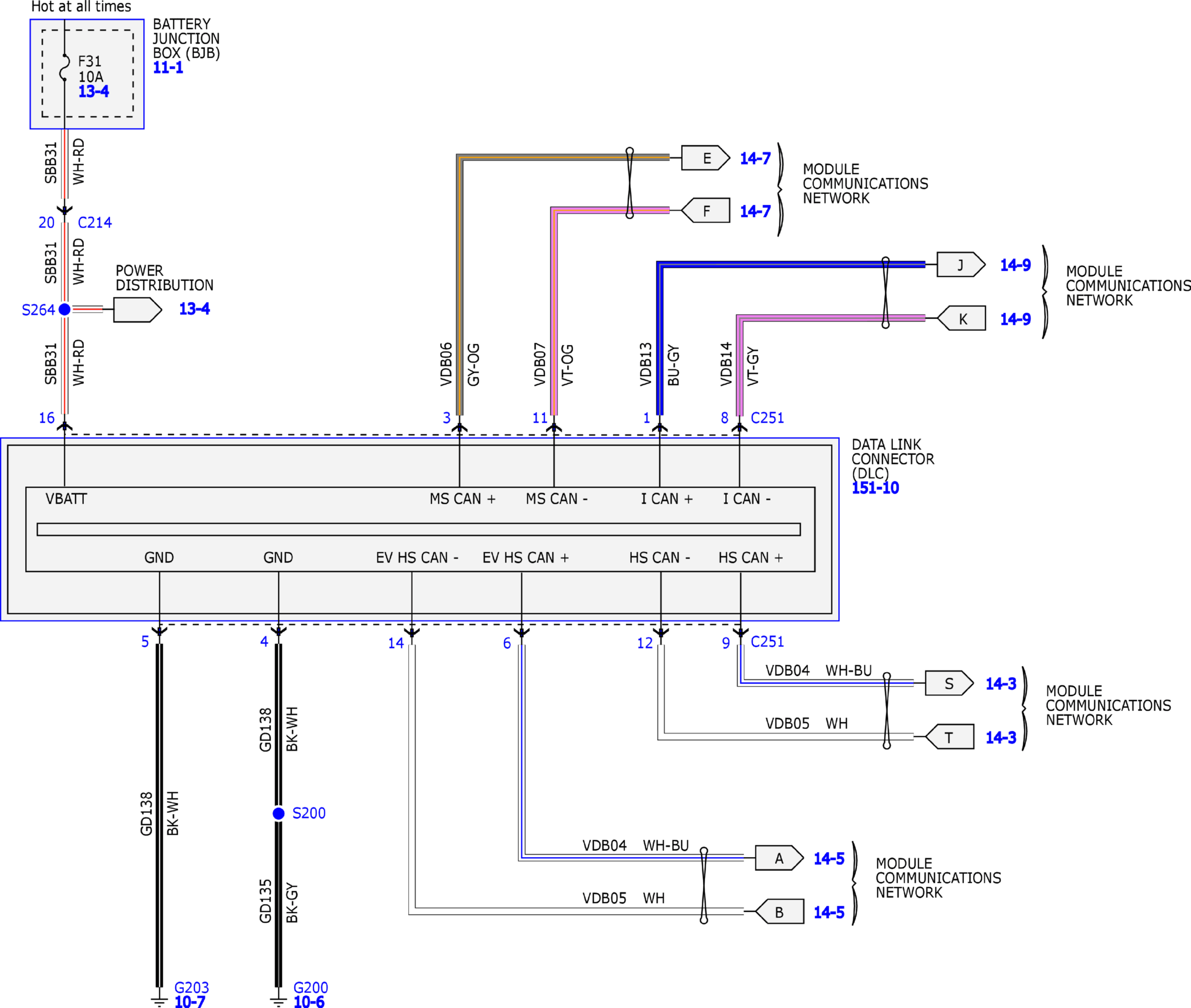

Fig 1: Module Communications Network Wiring Diagram (1 of 9)

Courtesy of FORD MOTOR COMPANY

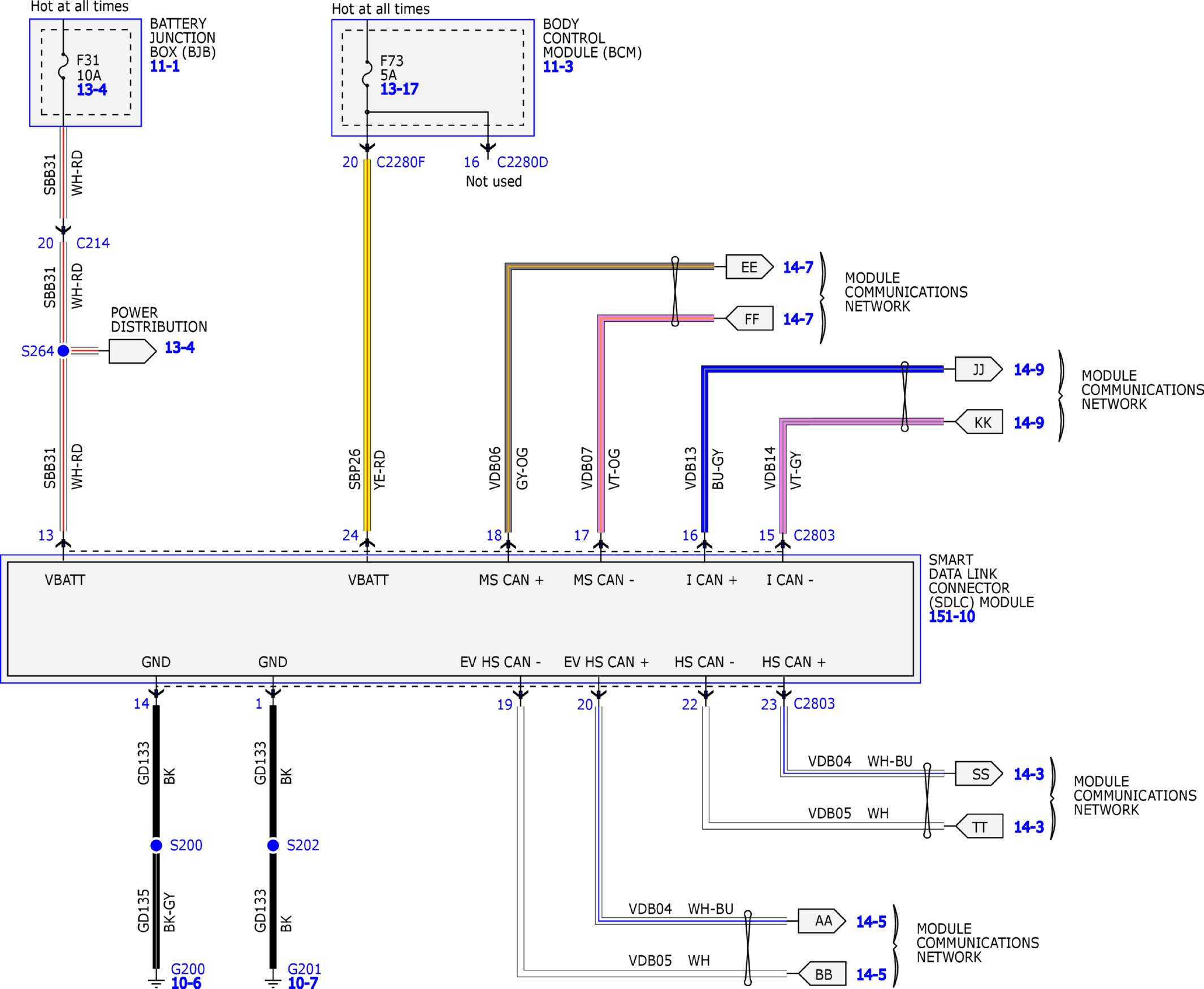

Fig 2: Module Communications Network Wiring Diagram (2 of 9)

Courtesy of FORD MOTOR COMPANY

Fig 3: Module Communications Network Wiring Diagram (3 of 9)

Courtesy of FORD MOTOR COMPANY

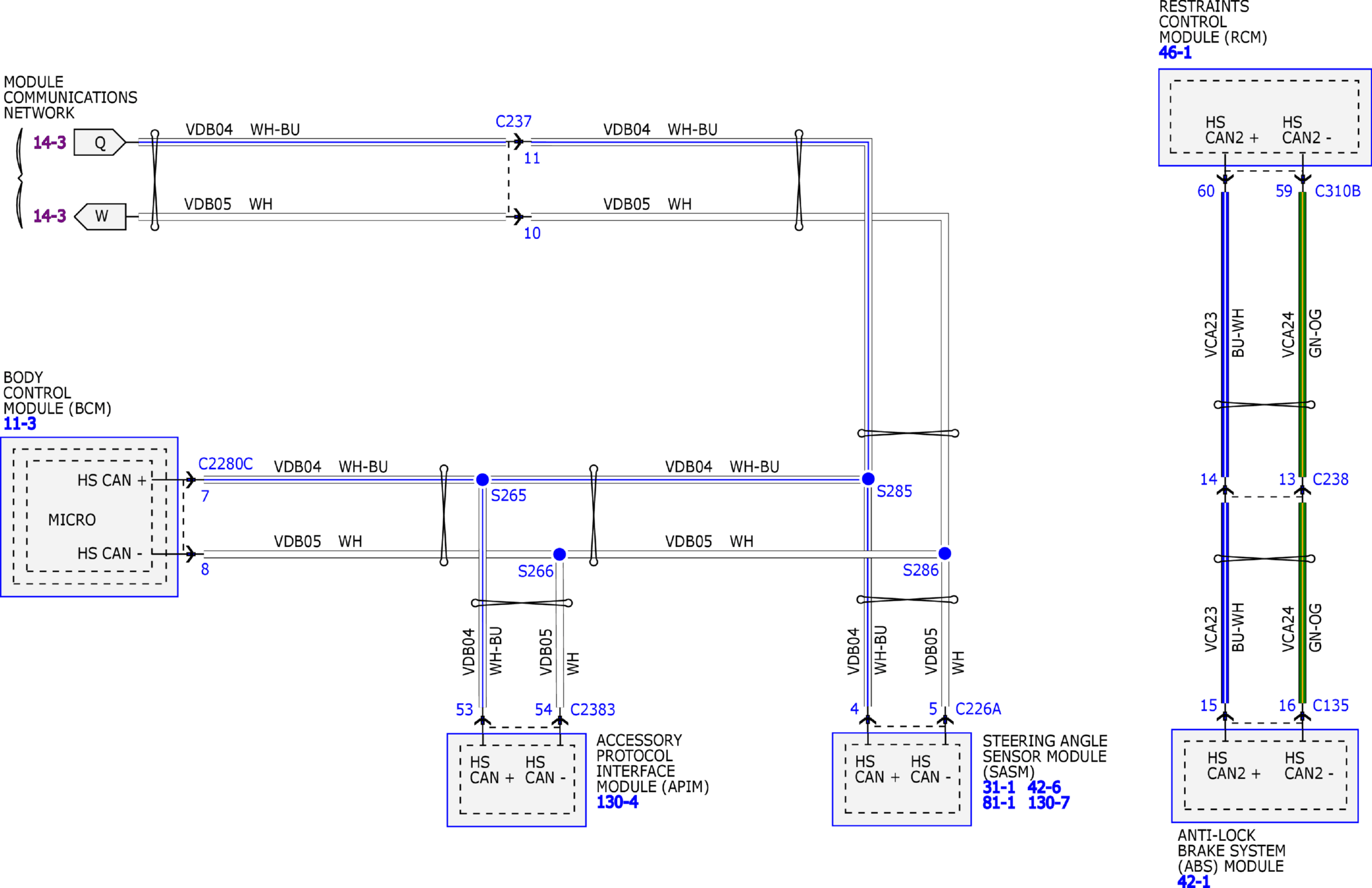

Fig 4: Module Communications Network Wiring Diagram (4 of 9)

Courtesy of FORD MOTOR COMPANY

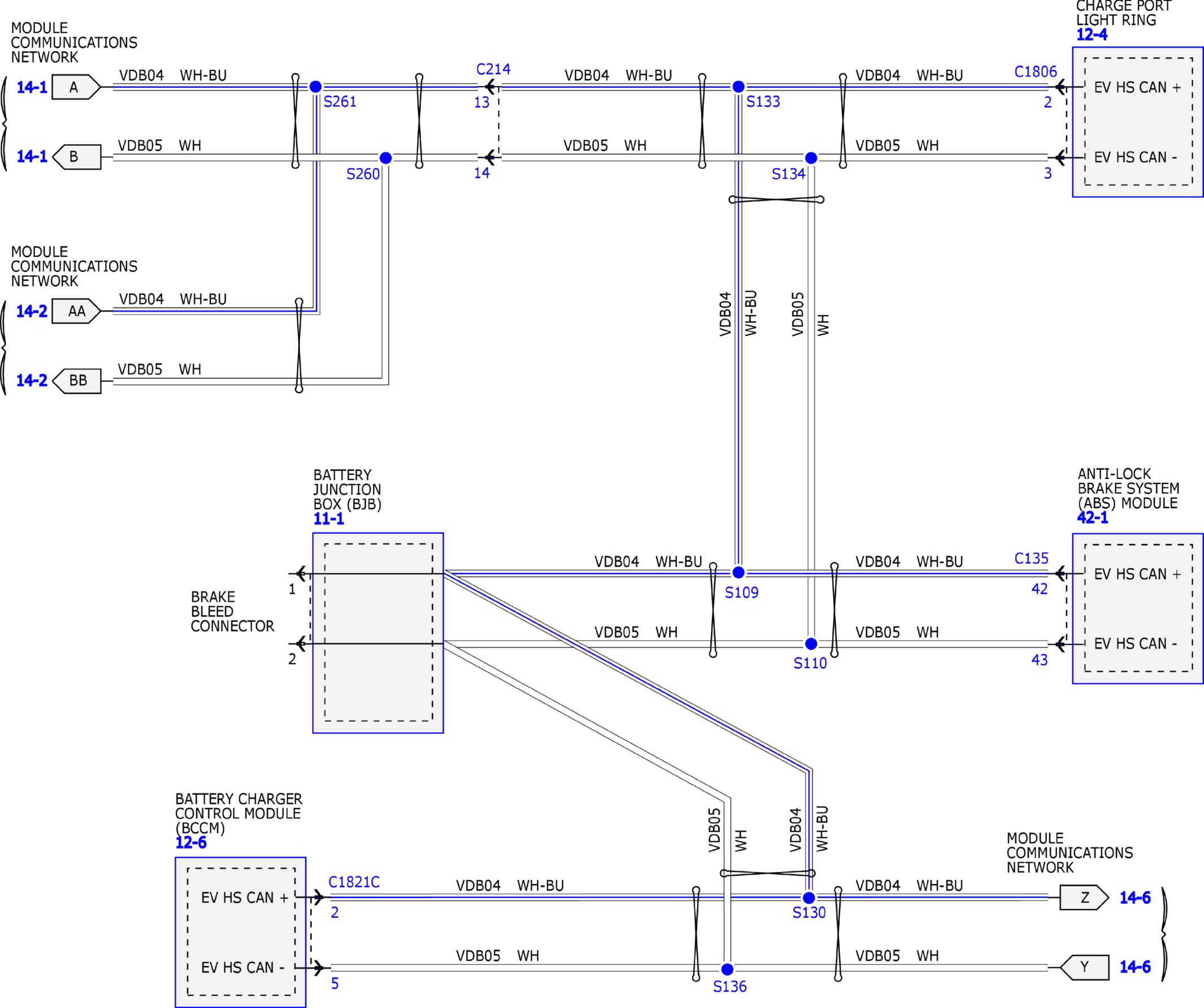

Fig 5: Module Communications Network Wiring Diagram (5 of 9)

Courtesy of FORD MOTOR COMPANY

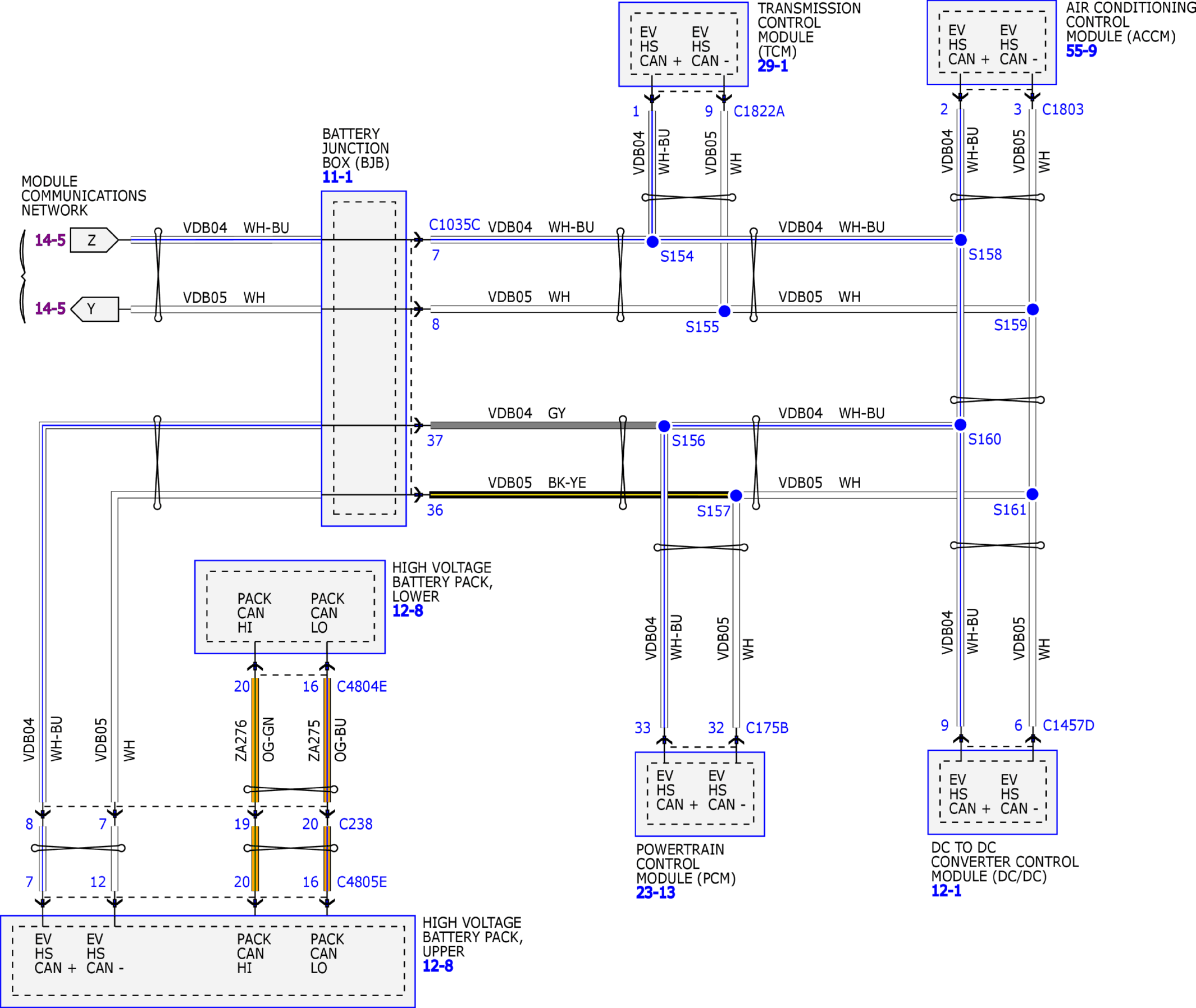

Fig 6: Module Communications Network Wiring Diagram (6 of 9)

Courtesy of FORD MOTOR COMPANY

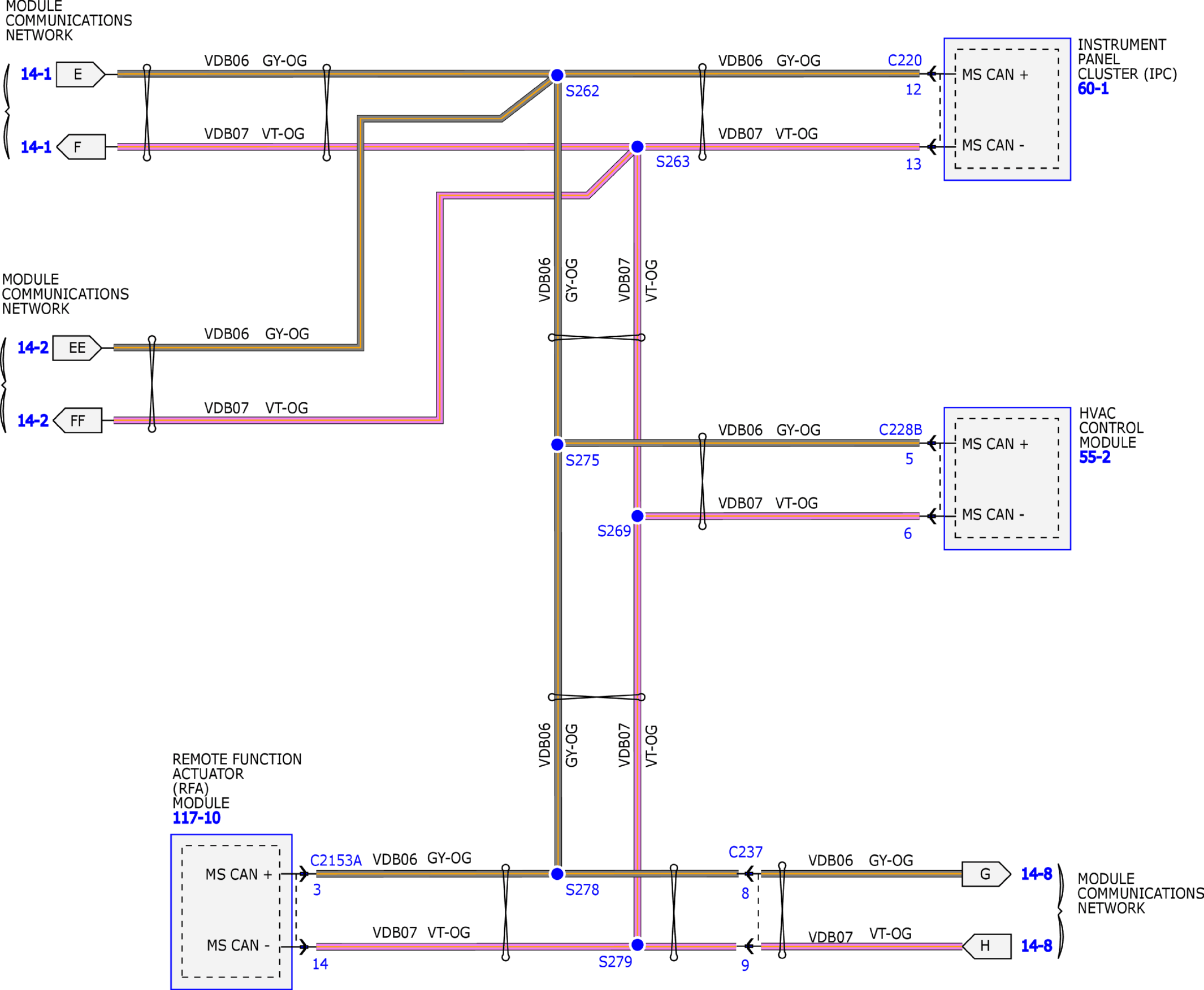

Fig 7: Module Communications Network Wiring Diagram (7 of 9)

Courtesy of FORD MOTOR COMPANY

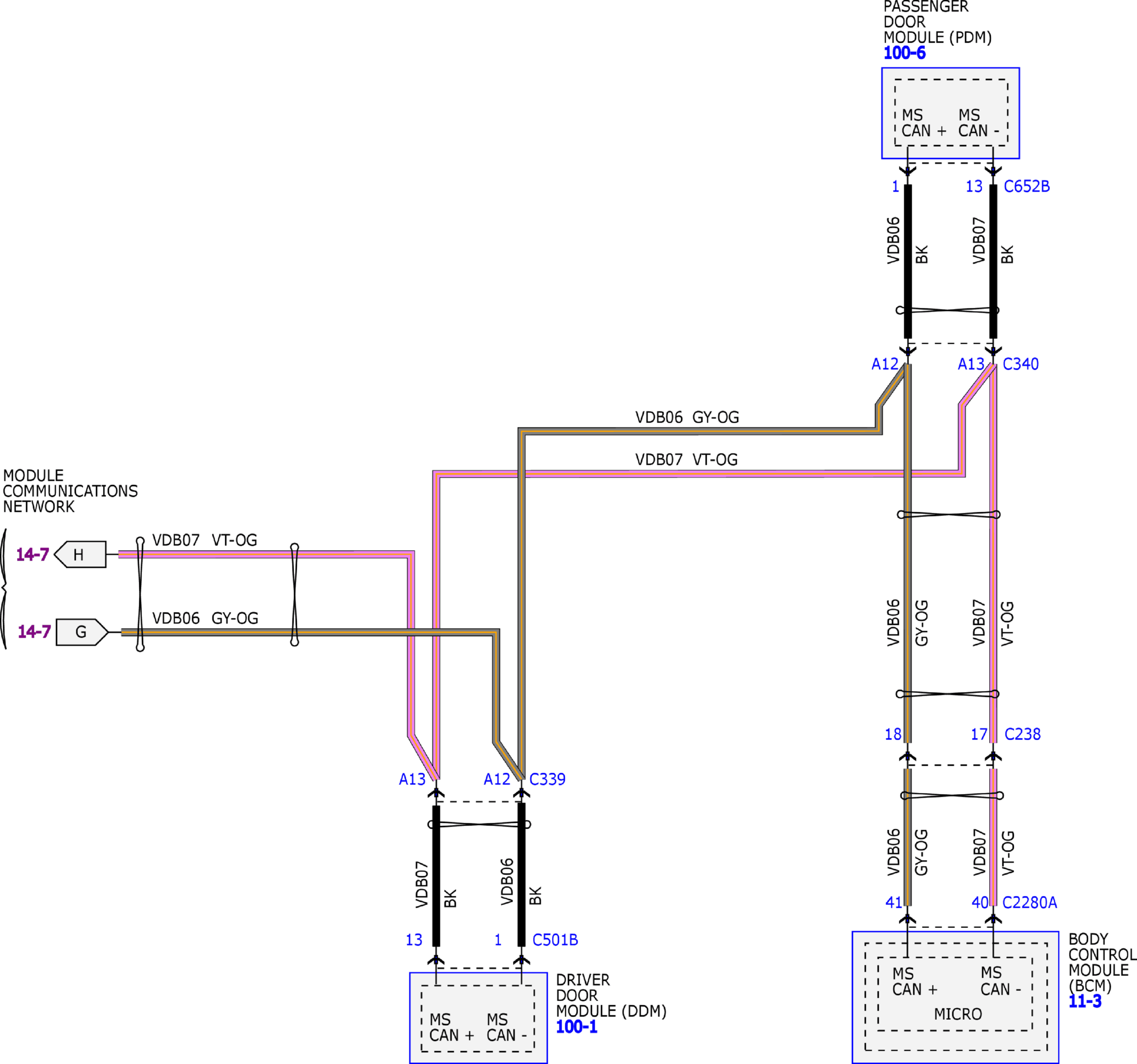

Fig 8: Module Communications Network Wiring Diagram (8 of 9)

Courtesy of FORD MOTOR COMPANY

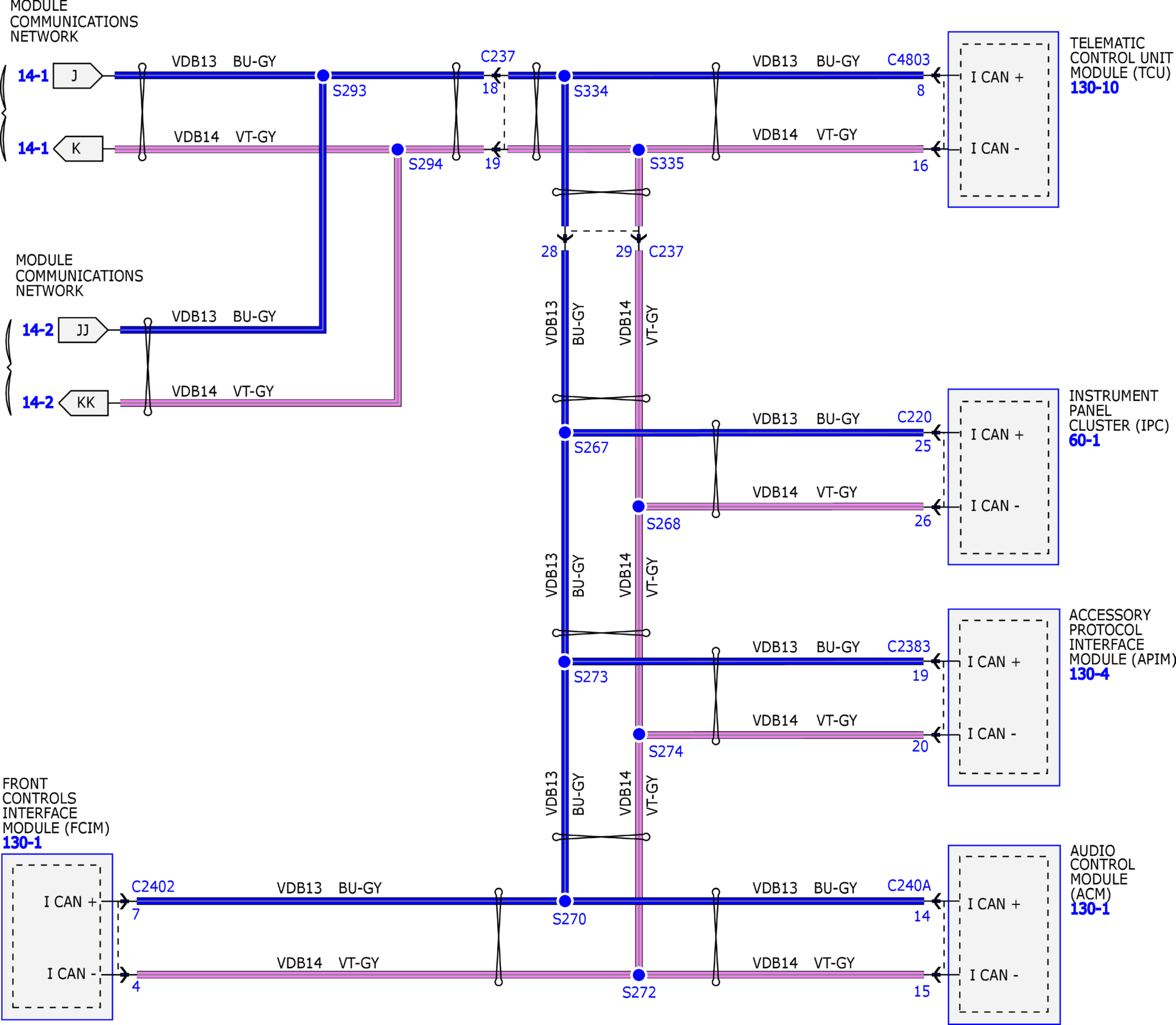

Fig 9: Module Communications Network Wiring Diagram (9 of 9)

Courtesy of FORD MOTOR COMPANY
