Fuel Pump Driver Module (FPDM): Removal

Vehicles with rear bench seat

• 1.

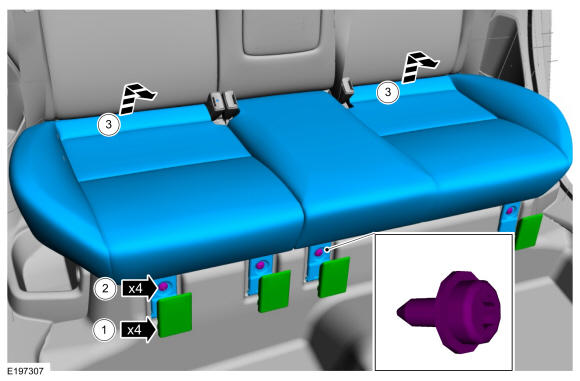

  Remove the rear seat cushion.

  • 1.

    Detach the fastener covers.

  • 2.

    Remove the fasteners.

    Torque: 18 lb.ft (24 Nm)

  • 3.

    Lift the cushion forward and remove.

Courtesy of FORD MOTOR COMPANY

Vehicles with split rear seat backrest

• 2.

  Position the RH front seat all of the way forward.

• 3.

  Raise the RH rear seat cushion and fold forward.

• 4.

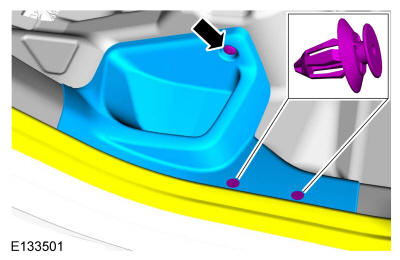

  Position the RH weather-strip aside and then remove scuff plate.

Courtesy of FORD MOTOR COMPANY

• 5.

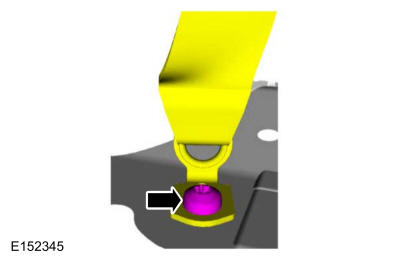

  Remove the RH outboard safety belt lower anchor bolt.

  Torque: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY

All vehicles

• 6.


  NOTE: The FPDM is held in place with an adhesive backing.

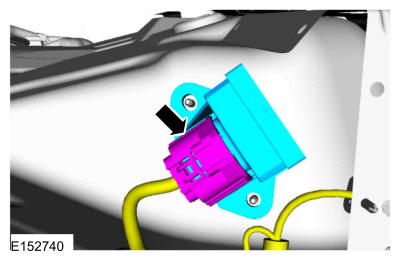

  Disconnect the FPDM electrical connector and remove the FPDM.
