Auxiliary Climate Control Housing: Notes
MATERIAL
| Item | Specification |
|---|---|
| Motorcraft® PAG Refrigerant Compressor Oil YN-12-D | WSH-M1C231-B |

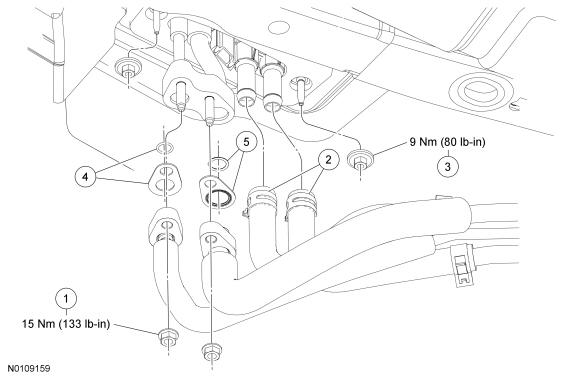

Auxiliary Line Floorpan Connections
| Item | Part Number | Description |
|---|---|---|
| 1 | W520413 | Auxiliary evaporator line fitting nut (2 required) |
| 2 | 8287 | Auxiliary heater line clamps (2 required) |
| 3 | N621907 | Auxiliary line floorpan bracket nut (2 required) |
| 4 | 19B596 | O-ring seal and gasket seal kit |
| 5 | 19B596 | O-ring seal and gasket seal kit |

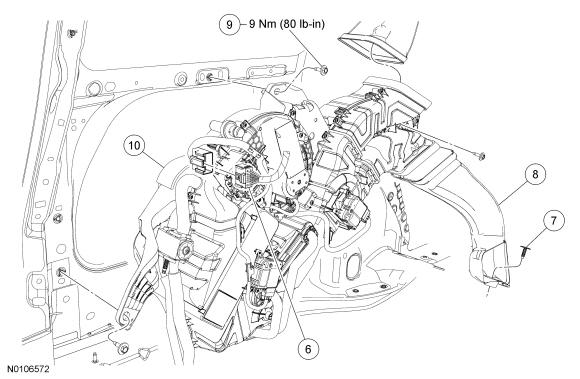

Auxiliary Climate Control Housing
| Item | Part Number | Description |
|---|---|---|
| 6 | - | Auxiliary climate control housing electrical connector (part of 19949) |
| 7 | W706635 | Auxiliary floor duct pin-type retainer |
| 8 | 19C680 | Auxiliary floor duct |
| 9 | W710330 | Auxiliary climate control housing bolt (3 required) |
| 10 | 19K610 | Auxiliary climate control housing |
