Power Transfer Unit

Special Tool(s) / General Equipment

• 1.

  Remove the front RH halfshaft. REFER to: Front Halfshaft RH - AWD .

• 2.

  Remove the RH catalytic converter. REFER to: Catalytic Converter .

• 3.

  Remove and discard the driveshaft to PTU bolt and washer assemblies.

Courtesy of FORD MOTOR COMPANY

• 4.


  NOTE: Do not remove driveshaft from the PTU flange by pulling on the driveshaft tube. Damage to the CV-joint can result.

  • 1.

    Mark the driveshaft and PTU flange alignment.

  • 2.

    Using a punch and a copper hammer, separate the driveshaft from the PTU flange.

    Use the General Equipment: Punch

    Use the General Equipment: Copper Hammer

  • 3.

    Remove the driveshaft from the PTU flange.

Courtesy of FORD MOTOR COMPANY

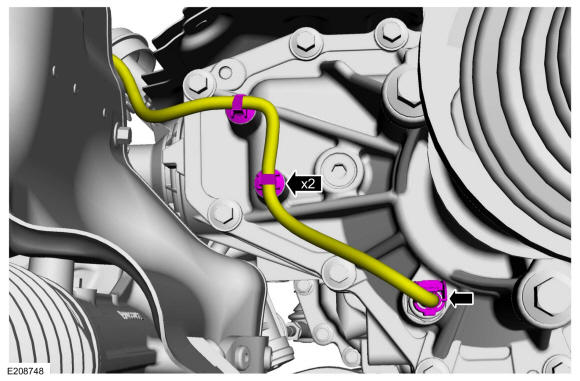

• 5.

  Disconnect the PTU temperature sensor and the temperature sensor harness retainers.

Courtesy of FORD MOTOR COMPANY

• 6.

  Remove the RH roll restrictor. REFER to: Roll Restrictor RH - 6F35.

• 7.

  Remove the roll restrictor bracket bolts and the roll restrictor bracket.

Courtesy of FORD MOTOR COMPANY

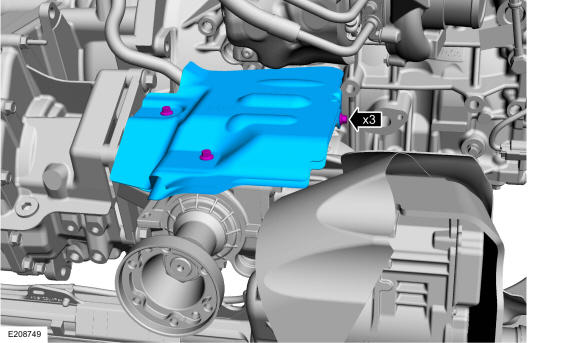

• 8.

  Remove the PTU heat shield bolts and the PTU heat shield.

Courtesy of FORD MOTOR COMPANY

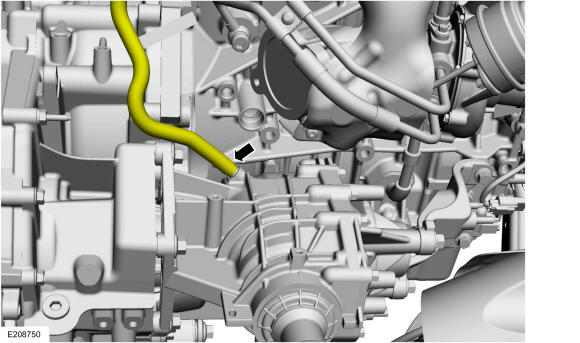

• 9.

  Disconnect the PTU vent hose.

Courtesy of FORD MOTOR COMPANY

• 10.

  Remove the RH turbocharger oil return line. REFER to: Turbocharger Oil Return Tube .

• 11.

  Remove and discard the steering gear bolts. Position the steering gear aside.

Courtesy of FORD MOTOR COMPANY

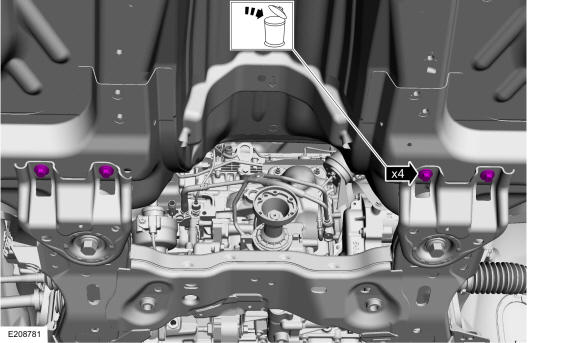

• 12.

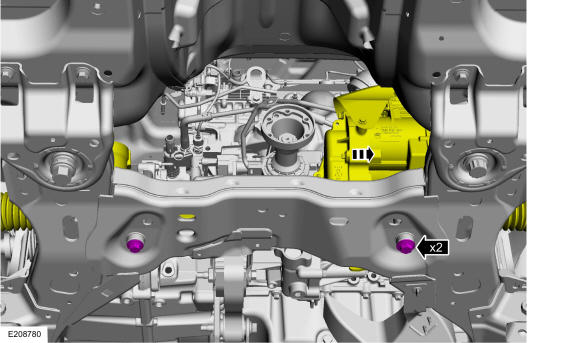

  Remove and discard the subframe bracket bolts.

Courtesy of FORD MOTOR COMPANY

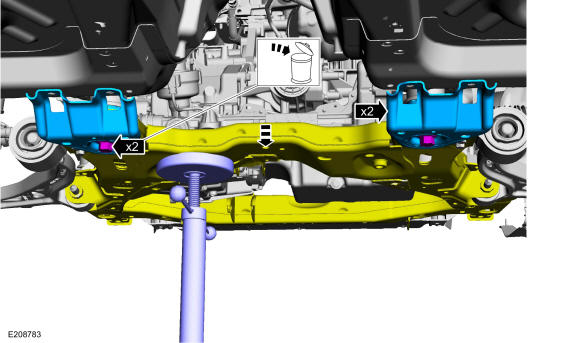

• 13.

  Using a safety stand, remove and discard the subframe rearward bolts and remove the front subframe brackets. Lower the rear of the front subframe.

  Use the General Equipment: Vehicle/Axle Stands

Courtesy of FORD MOTOR COMPANY

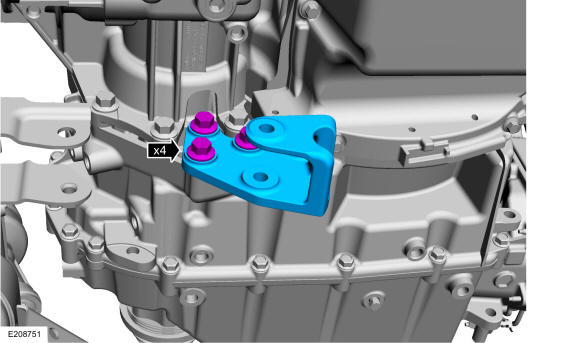

• 14.

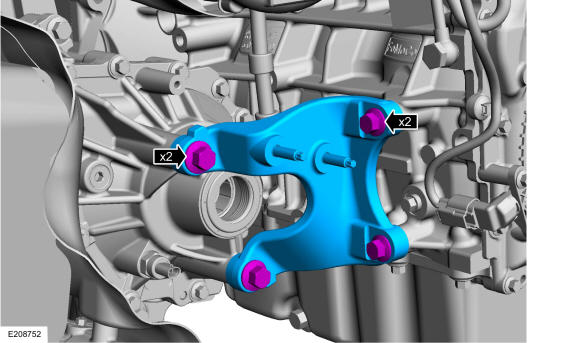

  Remove the PTU support bracket bolts and the PTU support bracket.

Courtesy of FORD MOTOR COMPANY

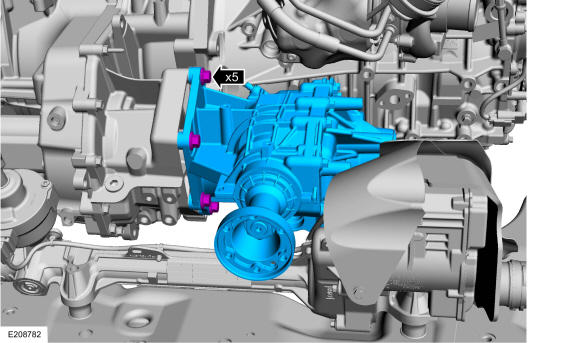

• 15.

  Remove the PTU bolts and the PTU.

Courtesy of FORD MOTOR COMPANY

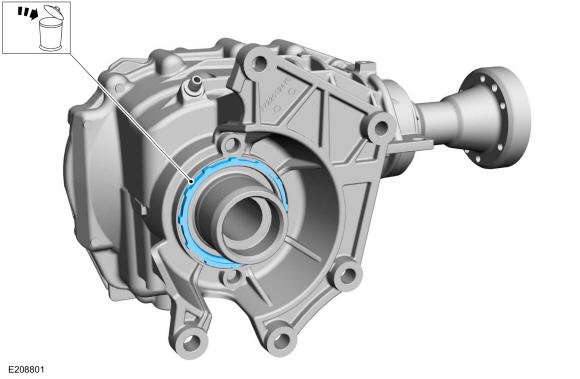

• 16.

  Remove and discard the compression seal.

Courtesy of FORD MOTOR COMPANY
