Powertrain Control Module (PCM): Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: Removal steps in this procedure may contain installation details.

  1. 1.

    NOTE: This step is only necessary when installing a new component.

    Download the module information to the diagnostic tool using the Programmable Modules Installation routine. REFER to: Module Configuration - System Operation and Component Description .

    Use the General Equipment: Ford Diagnostic Equipment

  1. 2.

    Remove the cowl panel. REFER to: Cowl Panel .

  1. 3.

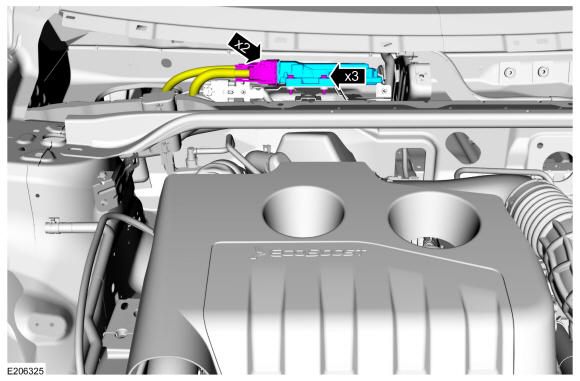

    Remove the retainers and the PCM.

    Torque

    : 89 lb.in (10 Nm)

GFD127081Courtesy of FORD MOTOR COMPANY
