Fuel Charging and Controls - Component Location

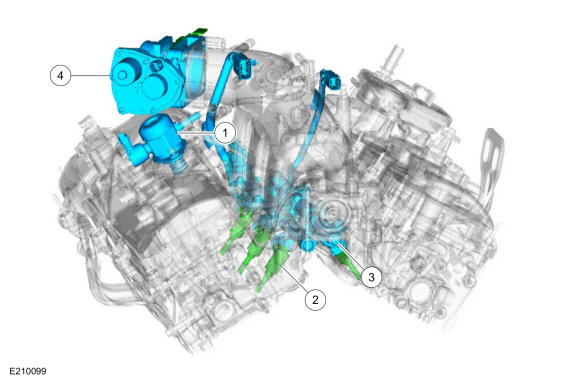

3.5L EcoBoost
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
High-pressure fuel pump |
| 2 |
Fuel injector |
| 3 |
Fuel rail |
| 4 |
Throttle Body (TB) |
FPDM (fuel pump driver module)
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |

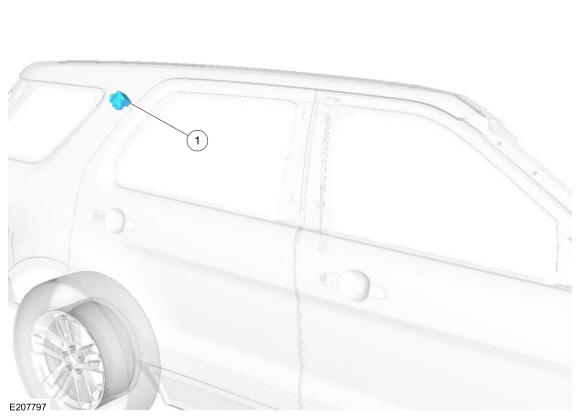

FPDM (fuel pump driver module)
Comments:
The FPDM (fuel pump driver module) is located behind the RH C-pillar trim panel. |
