Fuel Pump Driver Module (FPDM): Installation

• 1.

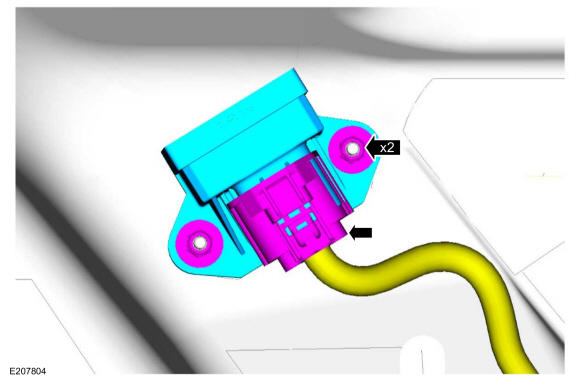

  Install the FPDM, then install and tighten the FPDM nuts. Connect the FPDM electrical connector.

  Torque

  : 53 lb.in (6 Nm)

Courtesy of FORD MOTOR COMPANY

• 2.

  Install the C-Pillar Trim Panel. Refer to: C-Pillar Trim Panel . Refer to: C-Pillar Trim Panel - Vehicles With: Inflatable Seatbelts .
