Front Seat Control Switch - Police: Removal

NOTE: Driver seat control switch shown in illustration, passenger seat control switch similar.

  1. 1.

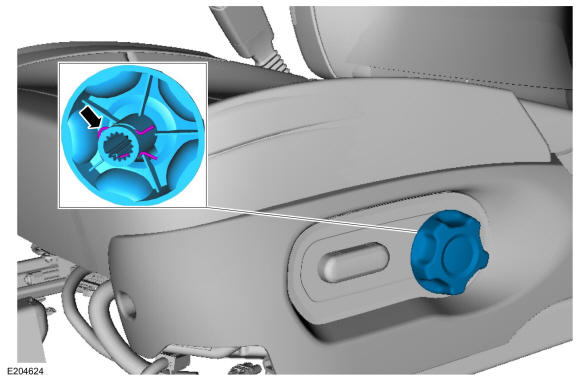

    Remove the clip and the manual lumbar knob.
GFD125584Courtesy of FORD MOTOR COMPANY

  1. 2.

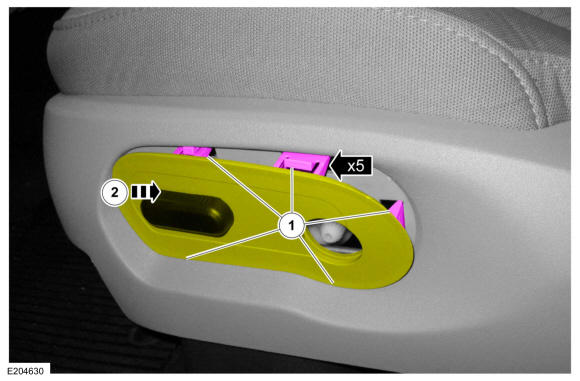

    NOTE: Do not pull out at the front of the seat control switch bezel. Otherwise, the seat control switch bezel retainers can be damaged.

    Position the seat control switch bezel out of the side shield.

    1. 1.

      From under the side shield. Push out from behind the seat control switch bezel to start detachment.

    1. 2.

      Slide the seat control switch bezel rearward.
GFD125585Courtesy of FORD MOTOR COMPANY

  1. 3.

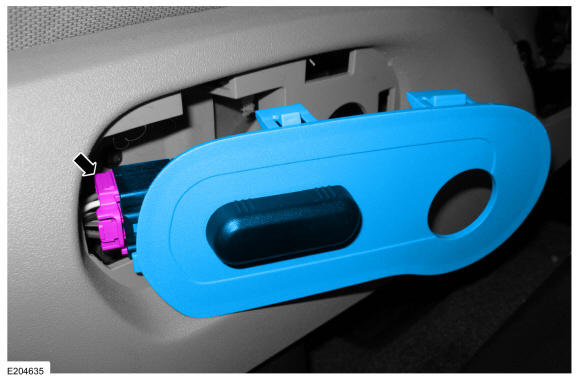

    Disconnect the seat control switch electrical connector and remove the seat control switch and bezel.
GFD125586Courtesy of FORD MOTOR COMPANY

  1. 4.

    NOTE: This step is only necessary when installing a new component.

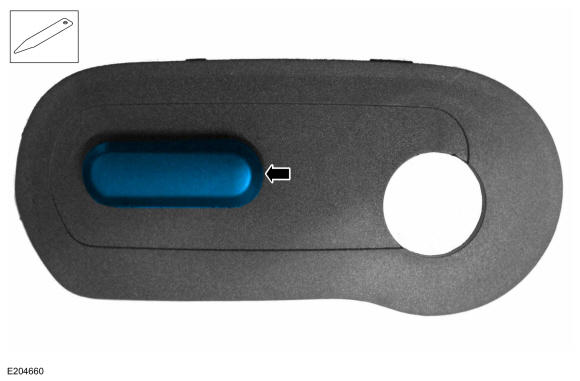

    Remove the seat control switch knob.

GFD125587Courtesy of FORD MOTOR COMPANY

  1. 5.

    NOTE: This step is only necessary when installing a new component.

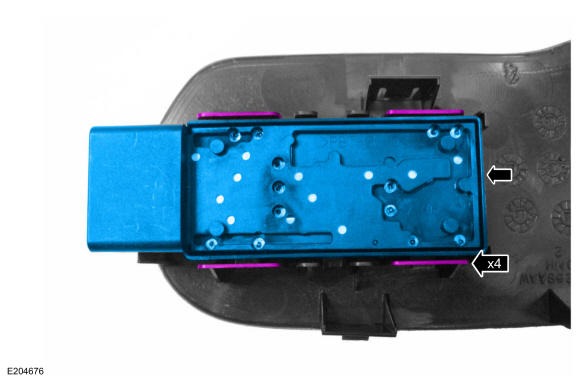

    Release the locking tabs and remove the seat control switch.

GFD125588Courtesy of FORD MOTOR COMPANY
