Engine Controls - Fuel Charging And Controls - 2.3L ECOBOOST (201KW/273PS)
>>
Description And Operation
>>
Fuel Charging and Controls - Component Location
Fuel Charging and Controls - Component Location

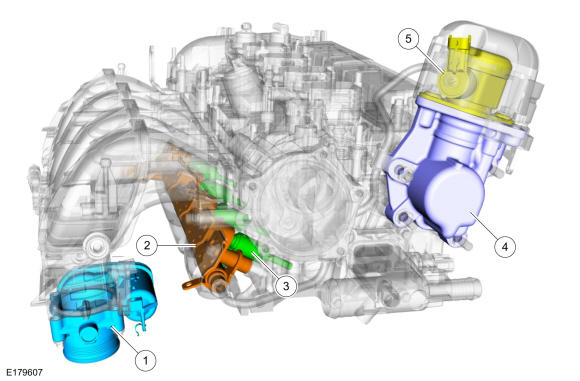

2.3L EcoBoost
Courtesy of FORD MOTOR COMPANY
Item
Description
1
Throttle Body (TB)
2
Fuel rail
3
Fuel injector
4
High-pressure fuel pump drive unit
5
High-pressure fuel pump
FPDM
Courtesy of FORD MOTOR COMPANY
Item
Description
1
FPDM
Comments:
The FPDM is located behind the RH C-pillar trim panel.
