Windshield Wiper Pivot Arm: Installation

WARNING: This page is about a different car, the 2018 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

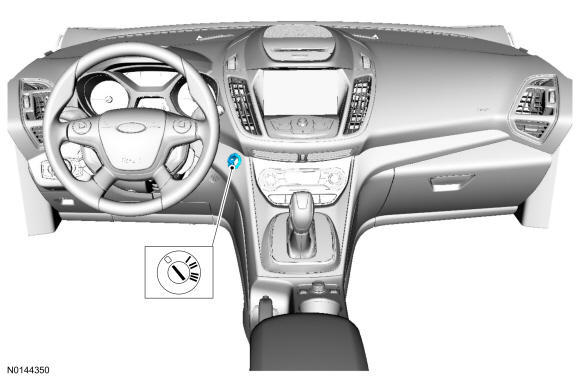

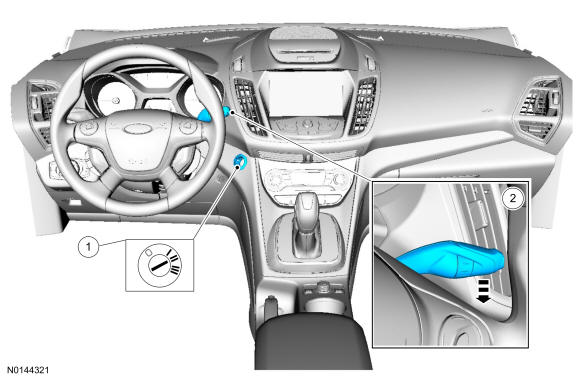

1. Set ignition switch to the II position (Ignition ON).
2. Cycle the wipers "ON" for one complete cycle and then turn the wipers "OFF".
Courtesy of FORD MOTOR COMPANY
NOTE: Make sure the wiper motor is in the PARK position.

NOTE: LH windshield wiper pivot arm is always positioned above the RH windshield wiper pivot arm.

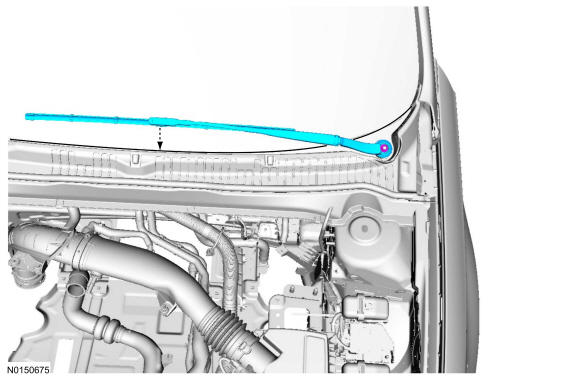

1. Align windshield wiper blades inside the marks on the windshield.
2. Install the wiper pivot arm washer and nut.
  Torque

  : 22 lb.ft (30 Nm)
Courtesy of FORD MOTOR COMPANY
NOTE: This step is only necessary If the windshield wiper arm(s) alignment marks are not available.

NOTE: Make sure the wiper motor is in the PARK position.

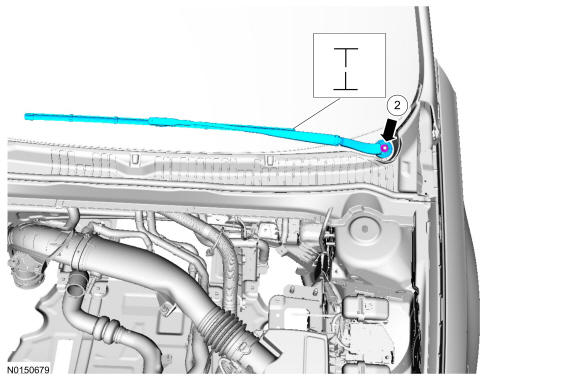

- Align LH wiper pivot arm to measurement.
  Dimension

  : 3.1496in (80mm)
- Align RH wiper pivot arm to measurement.
  Dimension

  : 1.9685in (50mm)
Courtesy of FORD MOTOR COMPANY

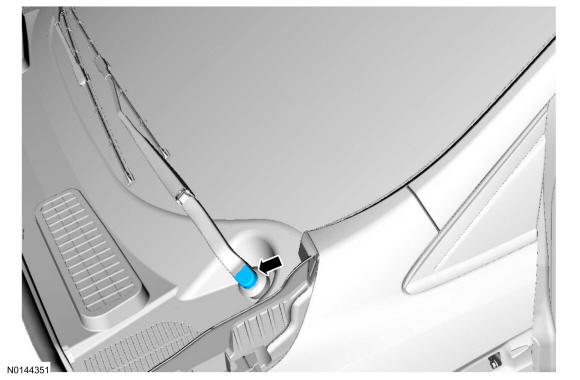

Install the wiper pivot arm nut cover.

Courtesy of FORD MOTOR COMPANY
Carry out a low speed windshield wipe on a wet windshield and make sure the wiper motor and arms park in the correct position.
Carry out a high speed windshield wipe on a wet windshield and make sure the wiper blades do not contact the A-pillar.
Set ignition to the 0 position (Ignition "OFF").

Courtesy of FORD MOTOR COMPANY
