Passenger Door Module (PDM): Removal

WARNING: This page is about a different car, the 2018 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: If available as a selection on the diagnostic scan tool, this step is required.

NOTE: If installing a new PDM, it is necessary to upload the module configuration information to the scan tool prior to removing the PDM. This information must be downloaded into the new PDM after installation.

If installing a new PDM, upload the module configuration information from the PDM into the scan tool by following the scan tool on screen instructions.
Remove the front door trim panel. Refer to: Front Door Trim Panel .

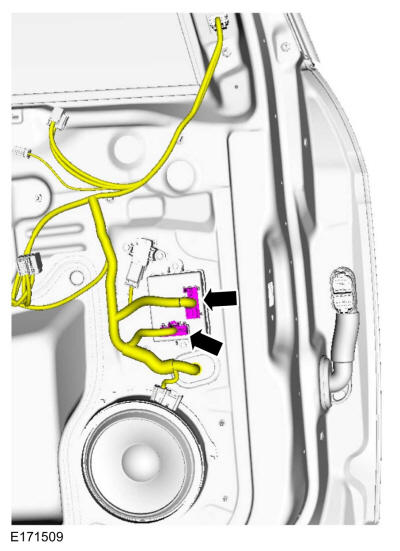

Disconnect the electrical connectors.

Courtesy of FORD MOTOR COMPANY

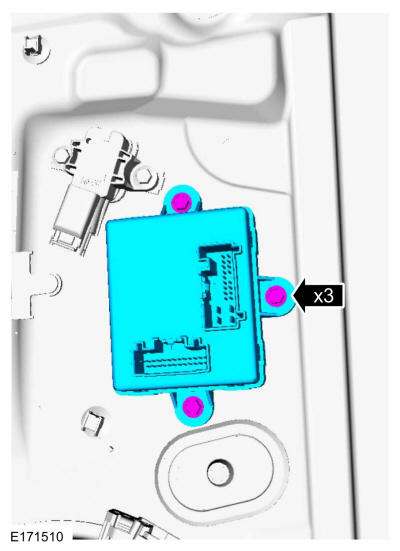

Remove the retainers and PDM.

Courtesy of FORD MOTOR COMPANY
