Throttle Body: Removal

  1. Remove the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .

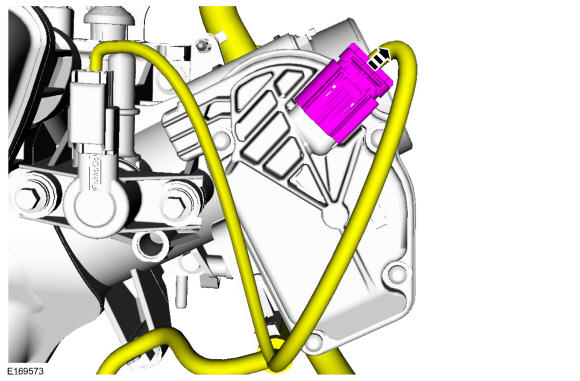

  2. NOTE: When disconnecting the Throttle Body (TB) electrical connector disengage the red locking tab on the Throttle Body (TB) electrical connector by sliding it to the rear of the Throttle Body (TB) electrical connector, away from the Throttle Body (TB). Squeeze the Throttle Body (TB) electrical connector while removing.

    Disconnect the Throttle Body (TB) electrical connector.

    GFD183710Courtesy of FORD MOTOR COMPANY

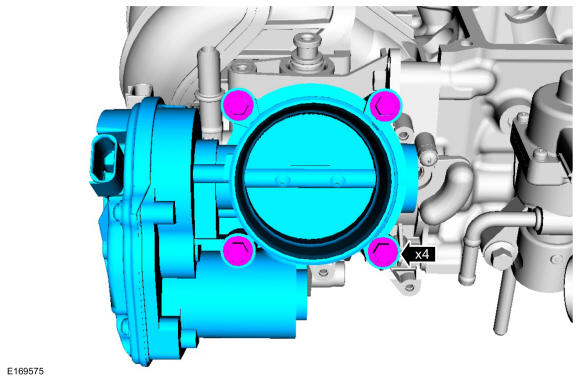

  3. Remove the Throttle Body (TB) bolts and then remove the Throttle Body (TB).
GFD183711Courtesy of FORD MOTOR COMPANY
