Fuel Charging and Controls - Component Location

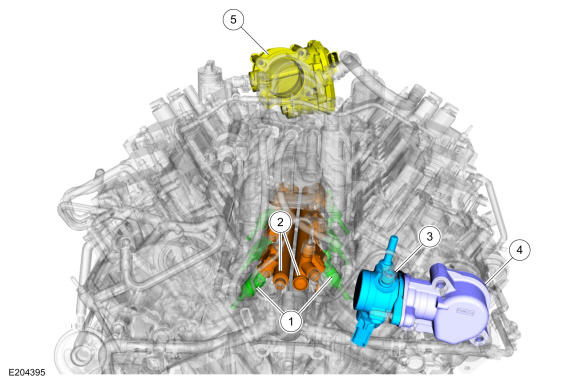

2.7L EcoBoost

Courtesy of FORD MOTOR COMPANY

Item	Description
1	Fuel injectors
2	Fuel rails
3	High-pressure fuel pump
4	High-pressure fuel pump drive unit
5	Throttle Body (TB)

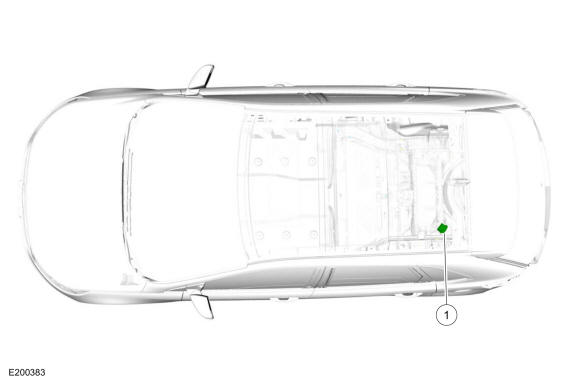

FPDM

Courtesy of FORD MOTOR COMPANY

Item	Description
1	FPDM. (The FPDM is attached to the underside of the rear floor above the rear subframe on the LH side.
