Power Fold Seat Control Switch: Removal

  1. 1.

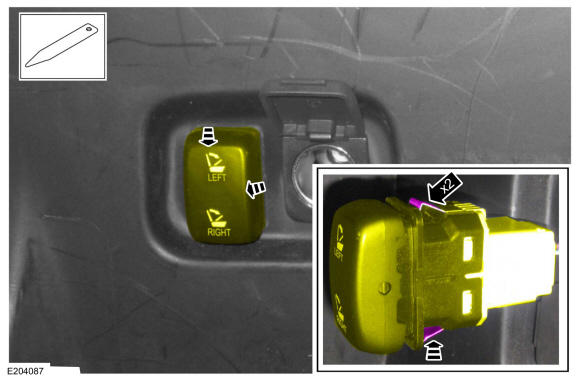

    Using an interior trim tool, release the power fold seat control switch locking tabs.

    Use the General Equipment: Interior Trim Remover

GFD17907Courtesy of FORD MOTOR COMPANY

  1. 2.

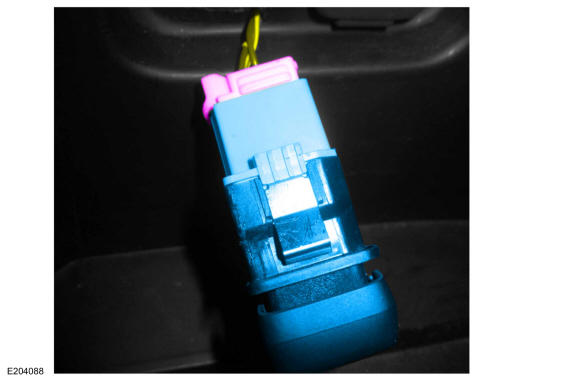

    Disconnect the electrical connector and remove the power fold seat control switch.
GFD17908Courtesy of FORD MOTOR COMPANY
