Heated Rear Seat Module: Removal

  1. 1.

    Remove the rear seat cushion. Refer to: Rear Seat Cushion .

  1. 2.

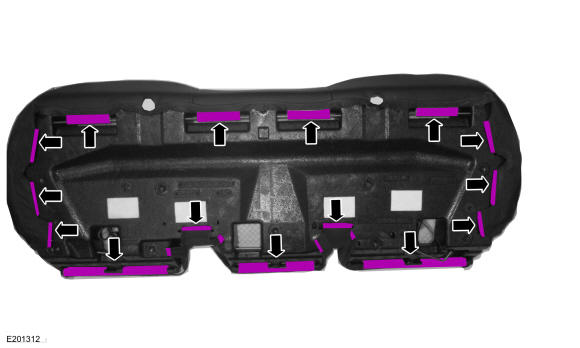

    Release the seat cushion cover J-clips.
GFD17900Courtesy of FORD MOTOR COMPANY

  1. 3.

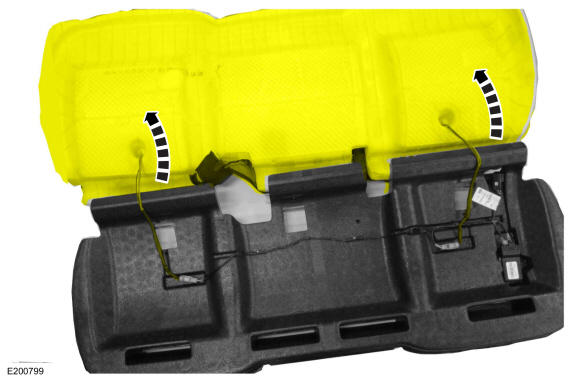

    Raise the rear seat cushion cover and foam.
GFD17901Courtesy of FORD MOTOR COMPANY

  1. 4.

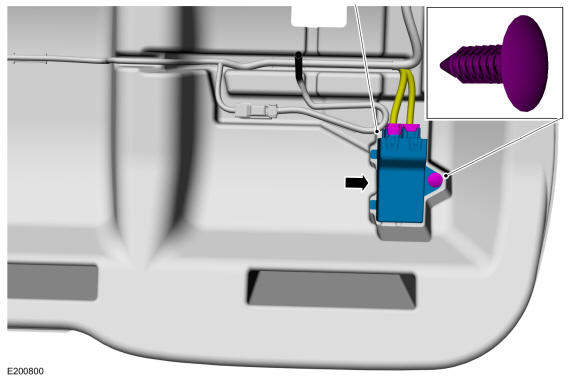

    Disconnect the electrical connectors. Remove the pin-type retainer and the heated rear seat module.
GFD17902Courtesy of FORD MOTOR COMPANY
