Front Seat: Removal
NOTE:
Power driver seat shown, all others similar.
- 1.

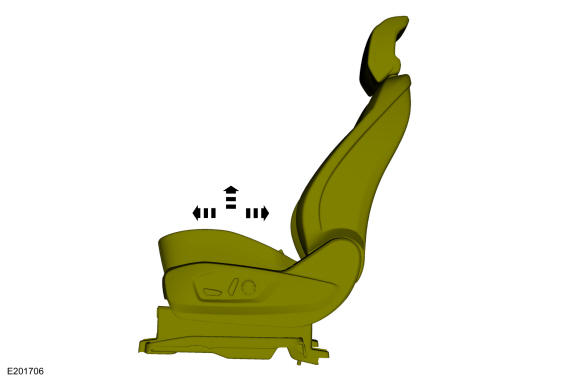

Position the seat to access the front seat bolts.- If a power seat cannot be positioned horizontally to access the front seat bolts, diagnose the inoperative horizontal seat track motor. Refer to: Front Seats .
- 2.
Depower the SRS. Refer to: Supplemental Restraint System (SRS) Depowering .
- 3.
Disconnect the seat harness electrical connector(s).- 1.
Detach the wire harness pin-type retainer(s).
- 2.
Release the locking tab(s) and rotate the position assurance lever(s).
- 1.
- 5.NOTE: Follow the unique instructions or graphics for this step in the installation.

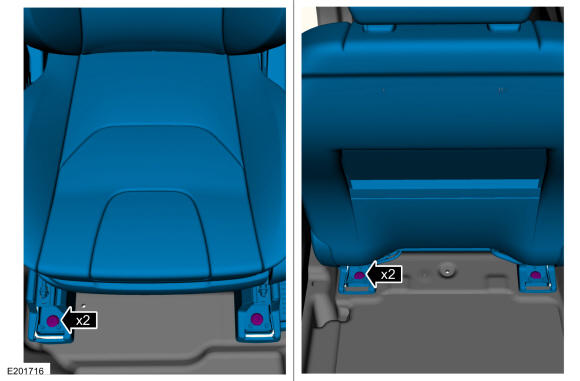

Remove the bolts and the front seat.
