Front Head Restraint Guide Sleeve: Removal

NOTE: Typical head restraint guide sleeve shown, others similar.

1. 1.

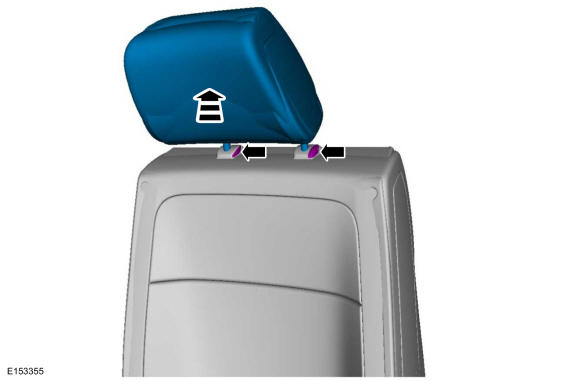

   Depress the locking tabs and remove the head restraint.

Courtesy of FORD MOTOR COMPANY

1. 2.

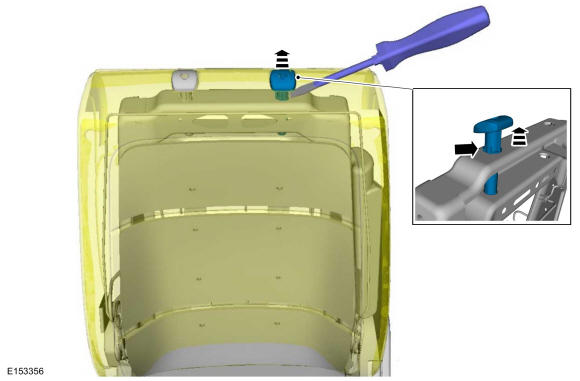

   Remove the headrest restraint guide sleeves. Use the General Equipment: Flat Headed Screw Driver

Courtesy of FORD MOTOR COMPANY

1. 3.

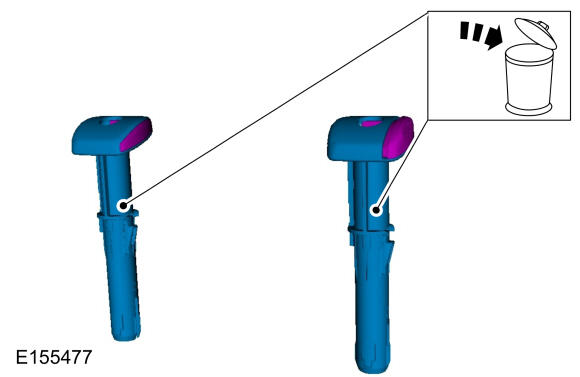

   Discard the head restraint guide sleeves.

Courtesy of FORD MOTOR COMPANY
